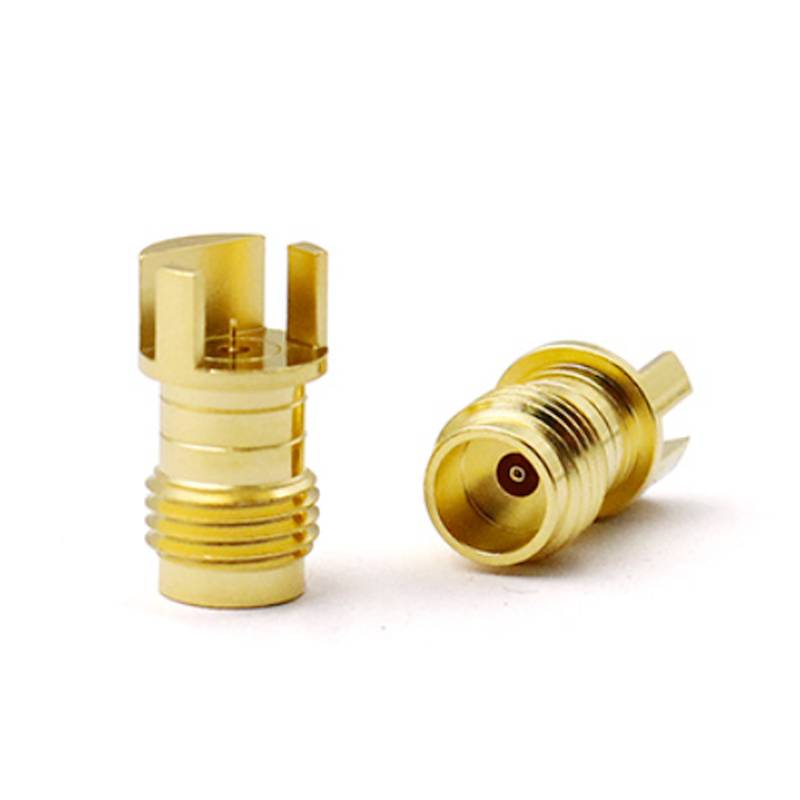

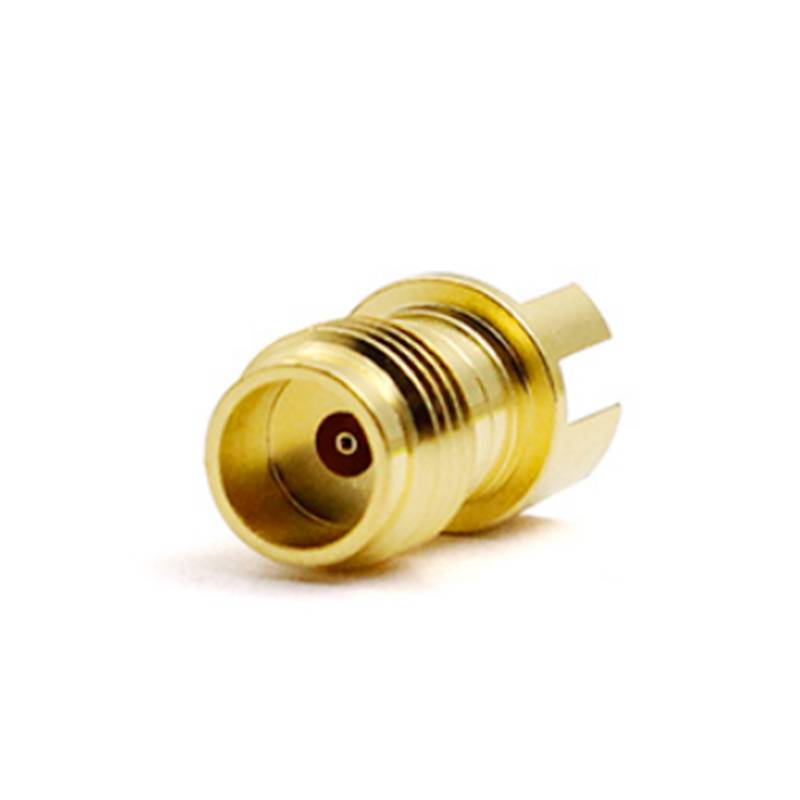

1.85mm Female Connector End Launch Suit for PCB Thickness 1.5mm to 1.6mm, DC - 65GHz

$19.90 USD
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

FR2-1.85-KHD101 is a 1.85mm Female Connector End Launch Suit for PCB Thickness 1.5mm to 1.6mm, DC - 65GHz coaxial connector that covers the frequency range from DC-65GHz. This connector has a Brass body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.4.This connector is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency connector is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: 1.85mm
Connector Polarity: Standard
Body Style: Straight
Connector Gender: Female
Termination Type: PCB
Connector Impedance (Ohm): 50
Mount Method: End Launch

Electrical Specifications:
Frequency: DC-65GHz
VSWR: 1.4
Insertion Loss: ≤0.3dB

Mechanical Data:
Body Material: Brass
Body Plating: Gold
Mating Cycles, Min: ≥500
Weight(g): 1.75

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
