  • Part Number: FR1-1.85/1.0-JJS
  • Vendor: Flexi RF Inc

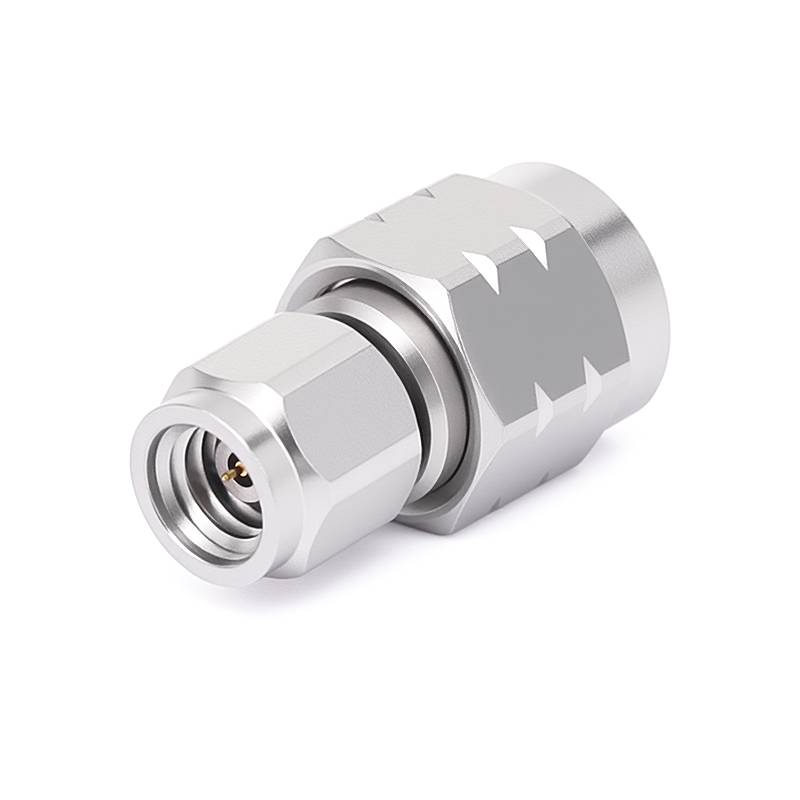

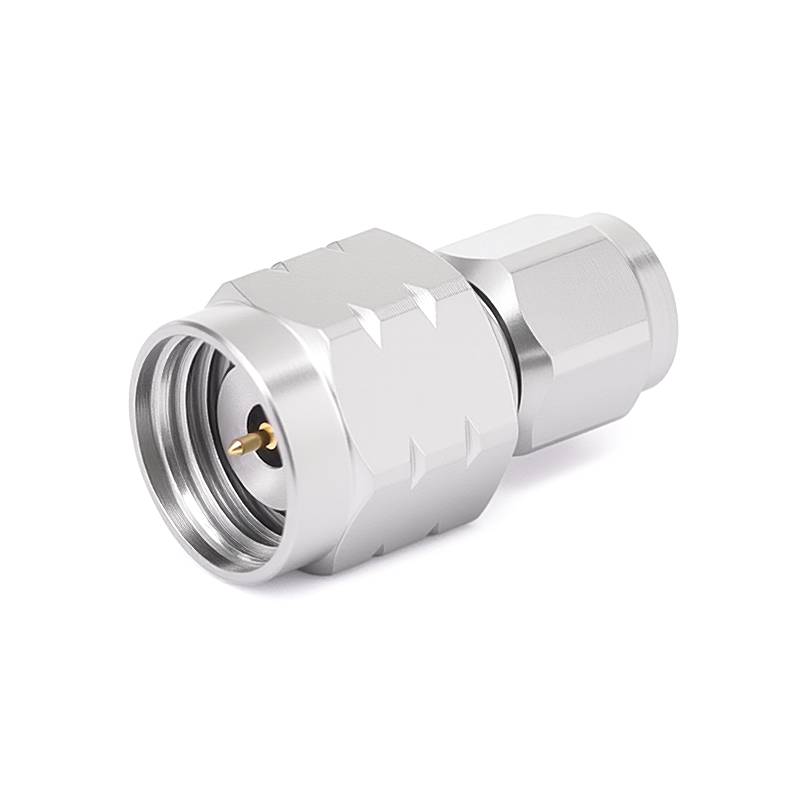

1.85mm Male to 1.0mm Male Adapter, DC - 67GHz

$347.05 USD
 per
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING

Product Description

FR1-1.85/1.0-JJS is a 1.85mm Male to 1.0mm Male Adapter, DC - 67GHz coaxial adapter that covers the frequency range from DC-67GHz. This adapter has a Straight body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.3.This adapter is precisely manufactured to RF industries like military&space, RF communication, test&measurement and industrial applications. The body of 1.85mm is made from Stainless Steel and the body of 1.0mm is made from Stainless Steel.The impedance of this adapter is 50 ohms to 50 ohms. Our 1.85mm Male to 1.0mm Male Adapter, DC - 67GHz adapter has an operating temperature range of -55 ºC to +165 ºC.

This radio frequency adapter is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector 1 Series: 1.85mm
Connector 2 Series: 1.0mm
Connector 1 Polarity: Standard
Connector 2 Polarity: Standard
Body Style: Straight
Connector 1 Gender: Male
Connector 2 Gender: Male
Connector 1 Impedance (Ohm): 50
Connector 2 Impedance (Ohm): 50

Electrical Specifications:
Frequency: DC-67GHz
VSWR: 1.3
Insertion Loss: ≤0.06 xSqt.(f_GHz)

Mechanical Data:
Connector 1 Body Material: Stainless Steel
Connector 1 Body Plating: Passivated
Connector 2 Body Material: Stainless Steel
Connector 2 Body Plating: Passivated
Mating Cycles, Min: ≥500
Weight(g): 3.9

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
