  • 2.4mm Female Solderless PCB Connector with 2 Hole Flange for CPW/Microstrip, DC - 50GHz
  •
  • Sku: FR2-2.4-KFD216
  • Vendor: Flexi RF Inc

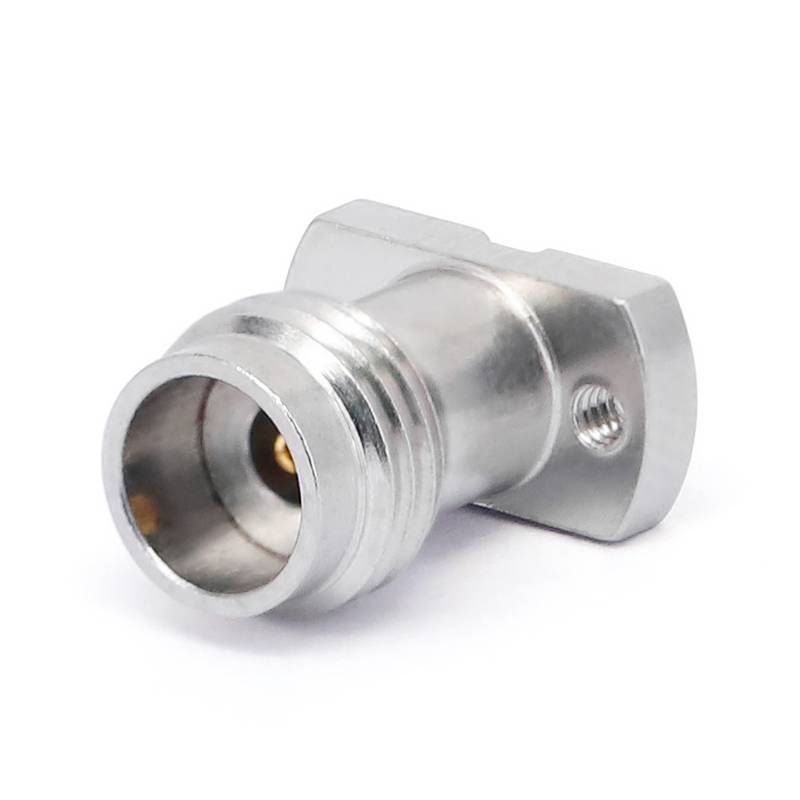

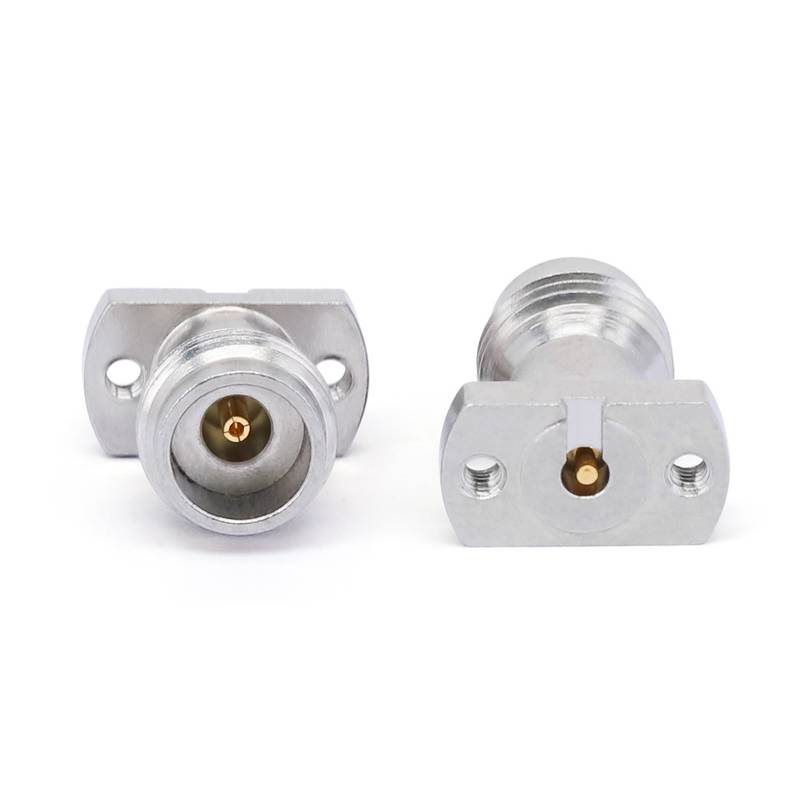

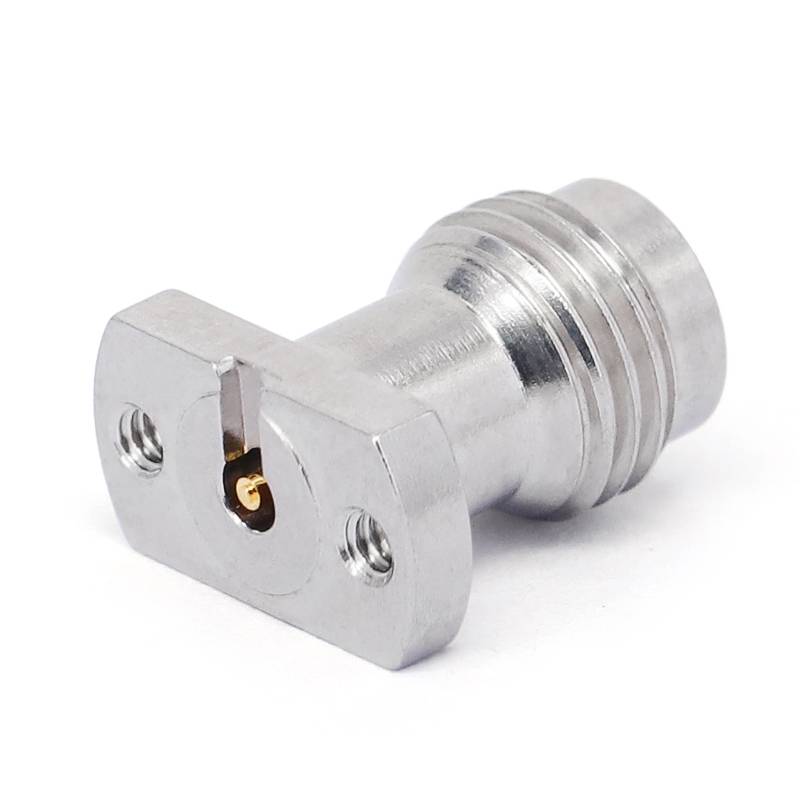

2.4mm Female Solderless PCB Connector with 2 Hole Flange for CPW/Microstrip, DC - 50GHz

$29.90 USD
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

FR2-2.4-KFD216 is a 2.4mm Female Solderless PCB Connector with 2 Hole Flange for CPW/Microstrip, DC - 50GHz coaxial connector that covers the frequency range from DC-50GHz. This connector has a Stainless Steel body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.25.This connector is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency connector is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: 2.4mm
Connector Polarity: Standard
Body Style: Straight
Connector Gender: Female
Termination Type: PCB
Connector Impedance (Ohm): 50
Mount Method: 2 Hole Flange

Electrical Specifications:
Frequency: DC-50GHz
VSWR: 1.25
Insertion Loss: ≤0.05 xSqt.(f_GHz)

Mechanical Data:
Body Material: Stainless Steel
Body Plating: Passivated
Mating Cycles, Min: ≥500
Weight(g): 1.8

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
