  • Part Number: FRU3-292M24M-200
  • Vendor: Flexi RF Inc

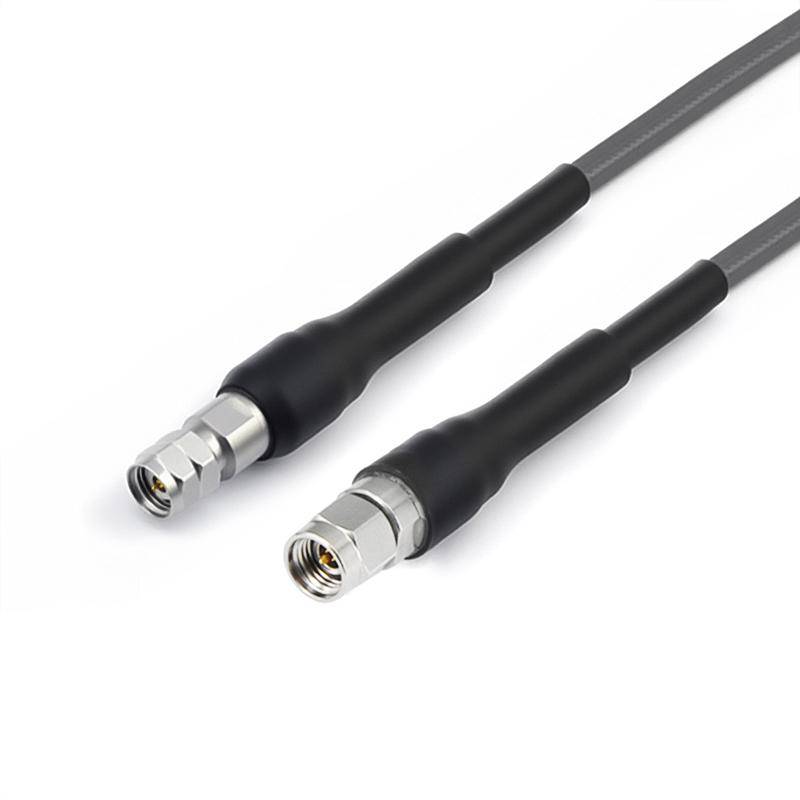

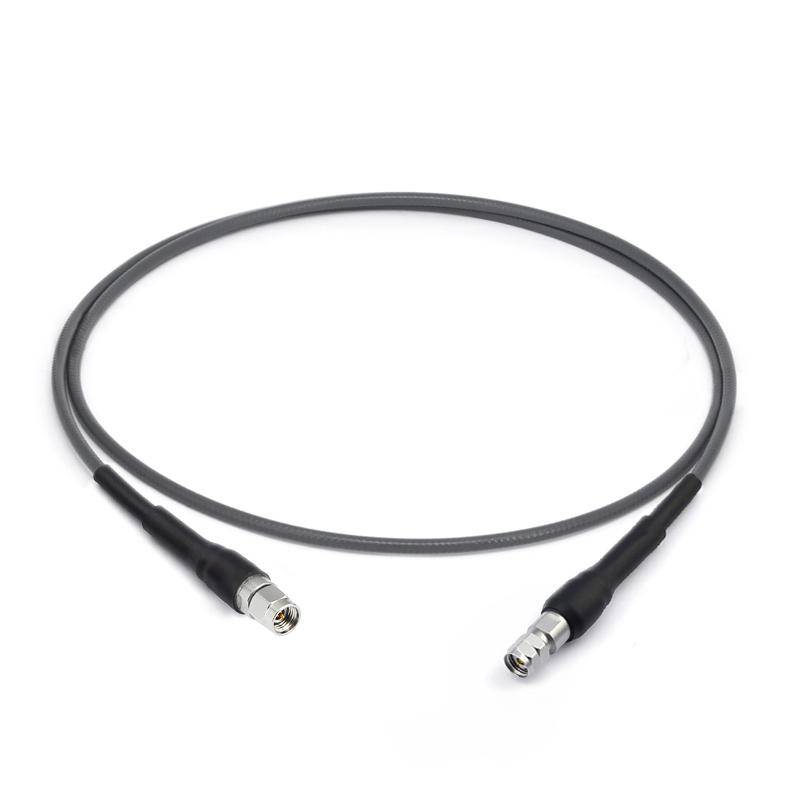

2.92mm Male to 2.4mm Male Cable Using 3507 Series Low Loss Phase Stable Flexible Coax, DC - 40GHz

$71.35 USD
 per
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING

Product Description

Important Notes:

1. For custom length cable assemblies, please don't forget to leave your length info on the checkout page;
2. All the cable assemblies can be provided with phase-matched pairs or groups; If you need the cables to be phase matched,please leave message at the checkout page or send email to us: sales@flexirf.com

FRU3-292M24M-XXX is a 2.92mm Male to 2.4mm Male Cable Using 3507 Series Low Loss Phase Stable Flexible Coax, DC - 40GHz cable assembly that covers the frequency range from DC-40GHz. This cable assembly use a Flexible cable 3507 and ensures an excellent microwave performance with low insertion loss and VSWR of 1.35. The cable is equipped with None armor. This cable asembly is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency cable assembly is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including other types of custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector 1 Series: 2.92mm
Connector 2 Series: 2.4mm
Connector 1 Polarity: Standard
Connector 2 Polarity: Standard
Connector 1 Gender: Male
Connector 2 Gender: Male
Connector 1 Impedance (Ohm): 50
Connector 2 Impedance (Ohm): 50
Connector 1 Mount Method: None
Connector 2 Mount Method: None
Connector 1 Body Style: Straight
Connector 2 Body Style: Straight
Coax Flex Type: Flexible
Coax Cable: 3507
Cable Out Diameter: 3.6mm
Armor Type: None

Electrical Specifications:
Frequency: DC-40GHz
VSWR: 1.35
RF Leakage: -90dBc

Mechanical Data:
Connector 1 Body Material: Stainless Steel
Connector 1 Body Plating: Passivated
Connector 2 Body Material: Stainless Steel
Connector 2 Body Plating: Passivated
Mating Cycles, Min: ≥500

Environmental Specifications:
Operating Temperature Range: -40 ºC to +80 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
