  • Part Number: 2.92-JPK
  • Vendor: Flexi RF Inc

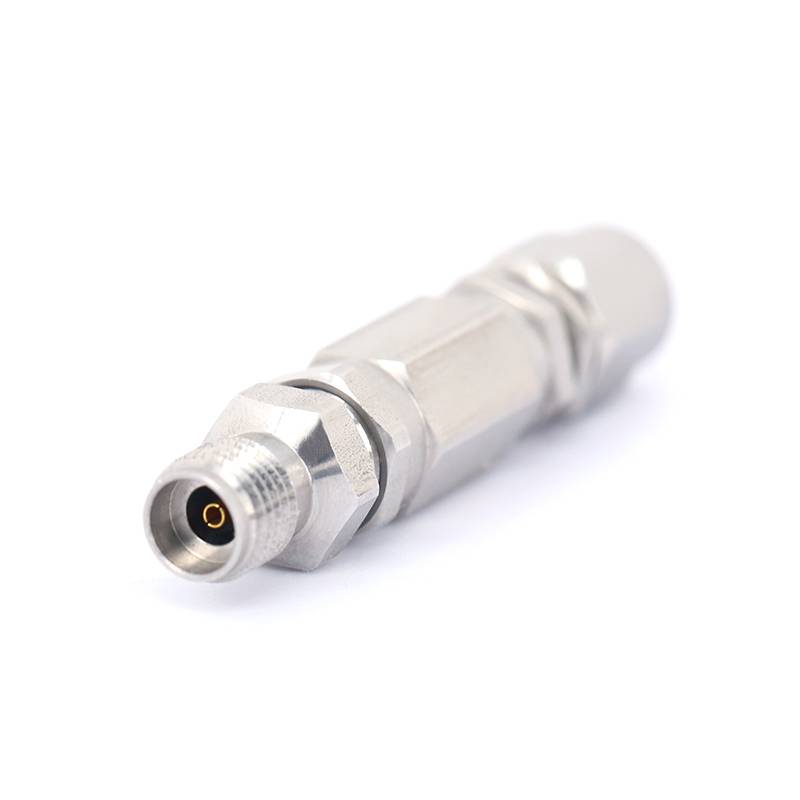

2.92mm Male to 2.92mm Female Adjustable Phase Trimmer, 260 Degrees Phase Range, DC - 40GHz

$99.90 USD
 per
Shipping calculated at checkout.
Just 5 left. Order soon!
Spend $500.00 to FREE SHIPPING

Product Description

2.92-JPK is a 2.92mm Male to 2.92mm Female Adjustable Phase Trimmer, 260 Degrees Phase Range, DC - 40GHz coaxial phase trimmer that covers the frequency range from DC-40GHz. This phase trimmer has a Stainless Steel body material and ensures an excellent microwave performance with low insertion loss and VSWR of 1.5.This phase trimmer is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency phase trimmer is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector-In Series: 2.92mm
Connector-Out Series: 2.92mm
Connector-In Polarity: Standard
Connector-Out Polarity: Standard
Connector-In Gender: Male
Connector-Out Gender: Female
Connector-In Impedance (Ohm): 50
Connector-Out Impedance (Ohm): 50

Electrical Specifications:
Frequency Range: DC-40GHz
VSWR: 1.5
Adjustable Phase: 260°

Mechanical Data:
Body Material: Stainless Steel
Body Plating: Passivated
Weight(g): 11.6

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
