  • 2-Way TNC Power Divider, One Output with DC Block, From 1.1 GHz to 1.7 GHz Rated at 30 Watts
  •
  • Part Number: GPD-2T-011017-E
  • Vendor: Flexi RF Inc

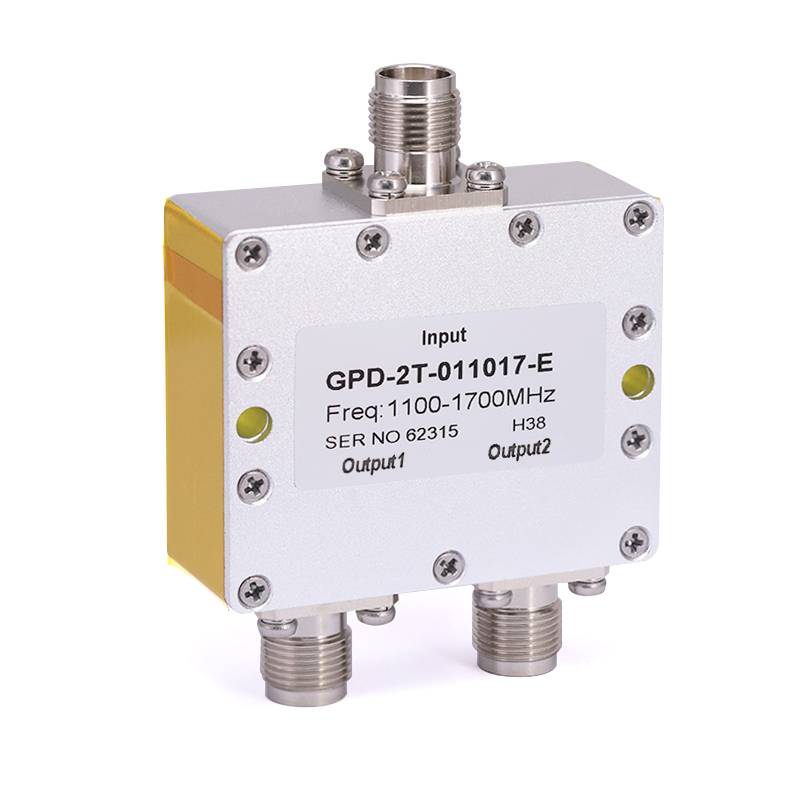

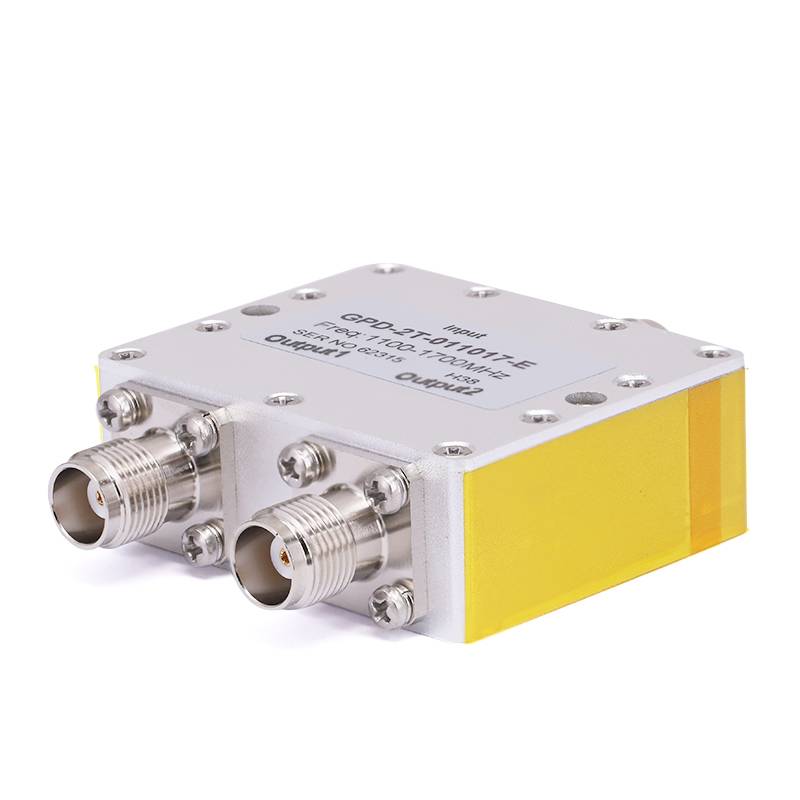

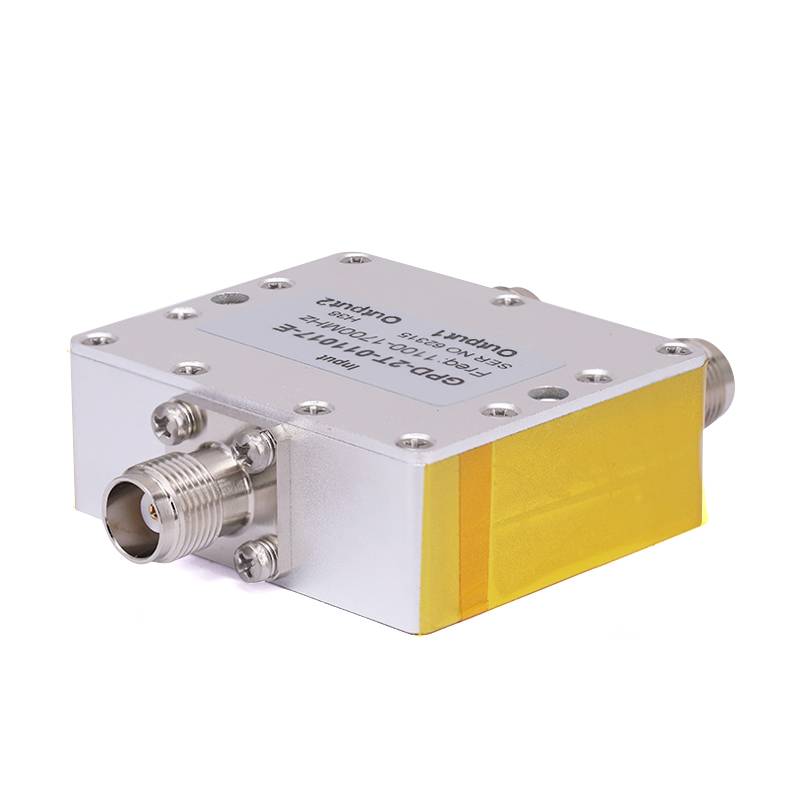

2-Way TNC Power Divider, One Output with DC Block, From 1.1 GHz to 1.7 GHz Rated at 30 Watts

$59.90 USD
Shipping calculated at checkout.
Just 2 left. Order soon!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

GPD-2T-011017-E is a 2-Way TNC Power Divider, One Output with DC Block, From 1.1 GHz to 1.7 GHz Rated at 30 Watts coaxial power divider that covers the frequency range from 1.1-1.7GHz. This power divider has a Aluminum housing material and ensures an excellent microwave performance with low insertion loss and VSWR of .This power divider is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency power divider is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Number of Output Ports: 2
Connector-In Series: TNC
Connector-Out Series: TNC
Connector-In Polarity: Standard
Connector-Out Polarity: Standard
Connector-In Gender: Female
Connector-In Impedance (Ohm): 50
Connector-Out Impedance (Ohm): 50

Electrical Specifications:
Insertion Loss(dB): ≤0.4
Power, Max Input (Watts): 30
Amplitude Balance(dB): ±0.2
Phase Balance(°): ±2
Isolation Min.(dB): 20

Mechanical Data:
Housing Material: Aluminum
Mating Cycles, Min: ≥500
Weight(g): 129.45

Environmental Specifications:
Operating Temperature Range: -35 ºC to +75 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
