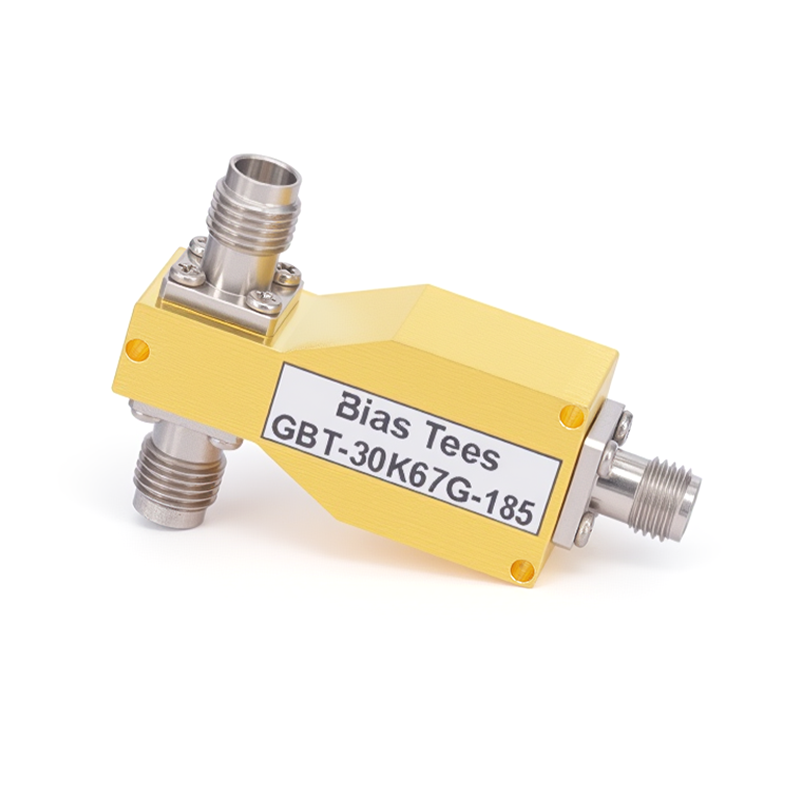

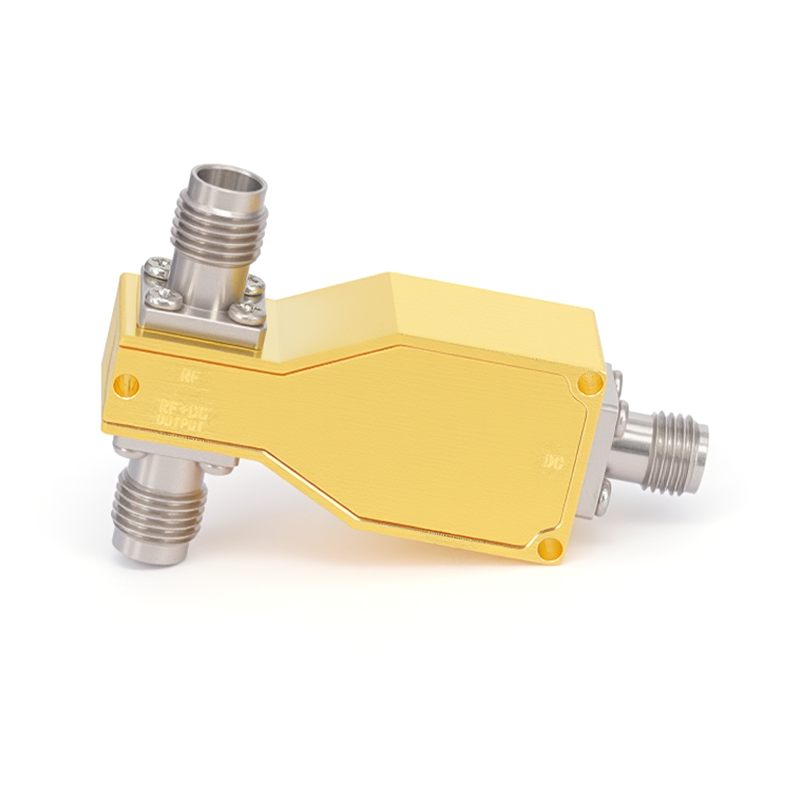

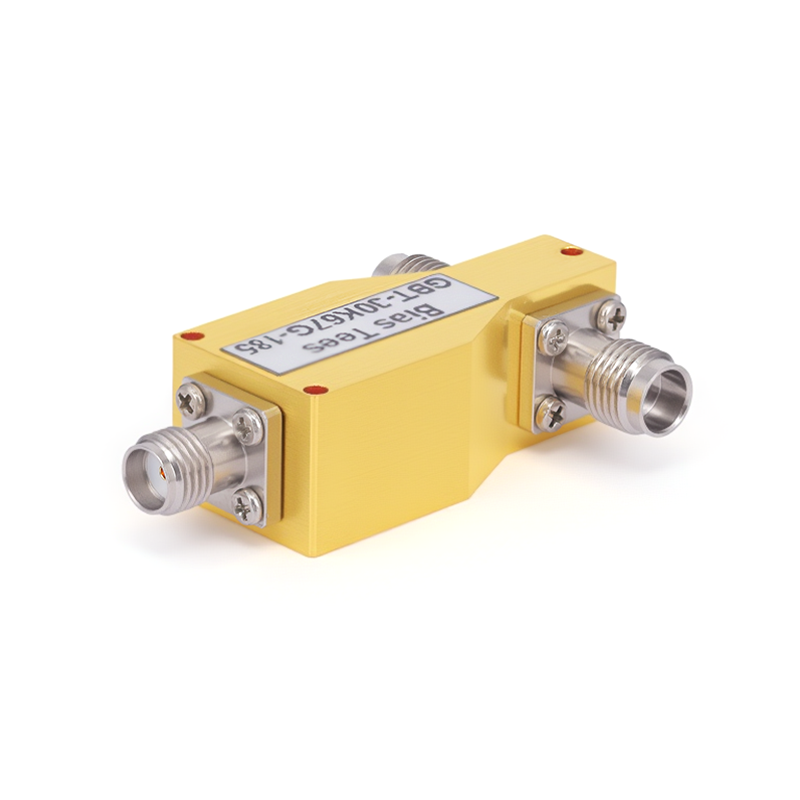

30 KHz to 67 GHz 1.85mm Bias Tee Rated to 500 mA And 25 Volts DC

$799.00 USD
Shipping calculated at checkout.
Just 1 left. Order soon!
Spend $500.00 to FREE SHIPPING

Product Datasheet

DATASHEET Available--->Click to download

Product Description

GBT-30K67G-185 is a 30 KHz to 67 GHz 1.85mm Bias Tee Rated to 500 mA And 25 Volts DC coaxial bias tee that covers the frequency range from 30KHz to 67GHz. This bias tee has a +25 Voltage,DC Max(Volts) and ensures an excellent microwave performance with low insertion loss and VSWR / Return Loss of -10dB. This bias tee is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications.

This radio frequency bias tee is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 145 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector-In Series: 1.85mm
Connector-Out Series: 1.85mm
Connector-In Polarity: Standard
Connector-Out Polarity: Standard
Connector-In Gender: Female
Connector-In Impedance (Ohm): 50
Connector-Out Impedance (Ohm): 50
DC Port Connector Series: SMA Female

Electrical Specifications:
VSWR: -10dB
Voltage, DC Max (Volts): +25
Current, Max (mA): 500
RF to Bias Isolation, Max (dB): 30
Power, Max Input (Watts): 1

Mechanical Data:
Mating Cycles, Min: ≥500

Environmental Specifications:
Operating Temperature Range: -25℃~+55℃
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
