  • Sku: RG-405SS
  • Vendor: Flexi RF Inc

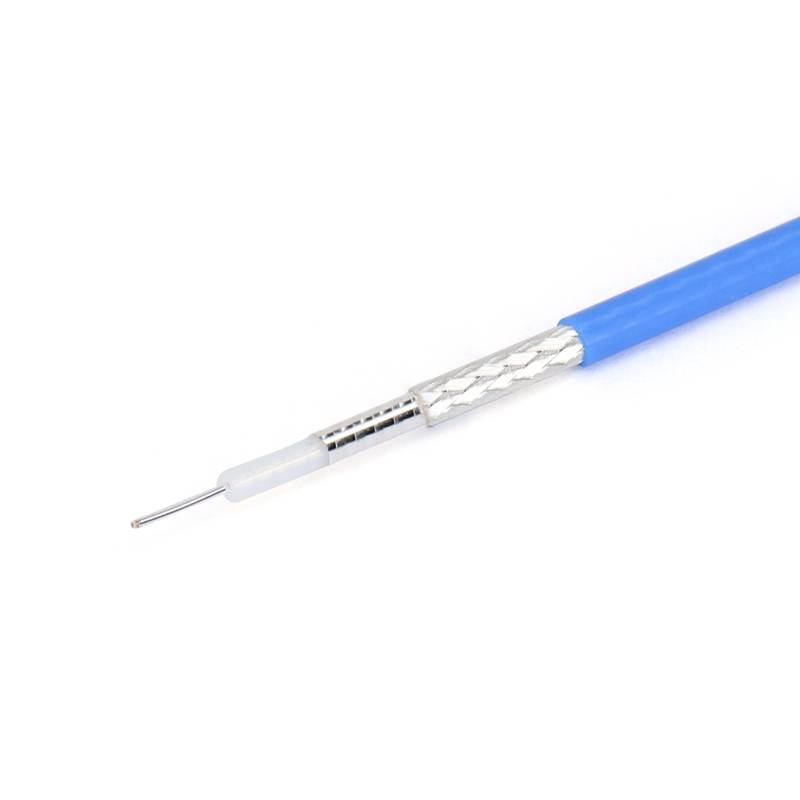

405 Series Flexible Coax Cable with FEP(Blue) Jacket | DC-20GHz

$9.90 USD
 per
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING

Product Description

RG-405SS is a 405 Series Flexible Coax Cable with FEP(Blue) Jacket | DC-20GHz RF coaxial cable is a type of cable that is commonly used to transmit radio frequency energy. It has the advantages of low attenuation, high shielding performance, bandwidth, and stable performance.Silver Plated Copper Covered Steel (SCCS)Generally, metal materials with high conductivity are selected, such as oxygen-free copper, copper-clad steel, high-strength copper alloy, etc.PTFE.This Raw Cable is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial.

RF coaxial cable is a type of cable that is commonly used to transmit radio frequency energy. It has the advantages of low attenuation, high shielding performance, bandwidth, and stable performance. It is typically used to transmit RF energy from 10MHz to 110GHz.The common impedances of cables are 50 ohms and 75 ohms Coaxial RF cable can be divided into semi-flexible, flexible and semi-rigid in terms of flexibility. The softness and bending radius of the cable depend on its size and building material; Some cables have a minimum bend radius of double the outer diameter. There are a variety of cable core insulation materials, including FEP, FEP(AS), PE, PE(AS), PE(F), PTFE or PTFE(F) and other types, which determine the wide range of performance characteristics of the cable. Our biaxial and coaxial cables meet a wide range of performance criteria such as attenuation, temperature, voltage, and RF power.

Specifications

Product Configuration:
Coax Flex Type: Flexible
Coax Cable: RG-405SS
Condcutor Out Diameter: 0.51mm
Dielectric Material: 1.63mm
Shield Out Diameter: 2.18mm
Jacket Out Diameter: 2.64mm

Electrical Specifications:
Frequency: DC - 20GHz
Cable impedance(ohm): 50
RF Leakage: 100dB
Capacitance(pF/m): 94
Velocity of propagation: 70%
400MHz-Attenuation: 0.3dB/m
1000MHz-Attenuation: 0.75dB/m
2000MHz-Attenuation: 1.05dB/m
6000MHz-Attenuation: 1.95dB/m
10000MHz-Attenuation: 2.56dB/m
18000MHz-Attenuation: 3.57dB/m

Mechanical Data:
Conductor Material: Silver Plated Copper Covered Steel (SCCS)
Dielectric Material: PTFE
Jacket Material: FEP
Weight(g): 19.1

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
