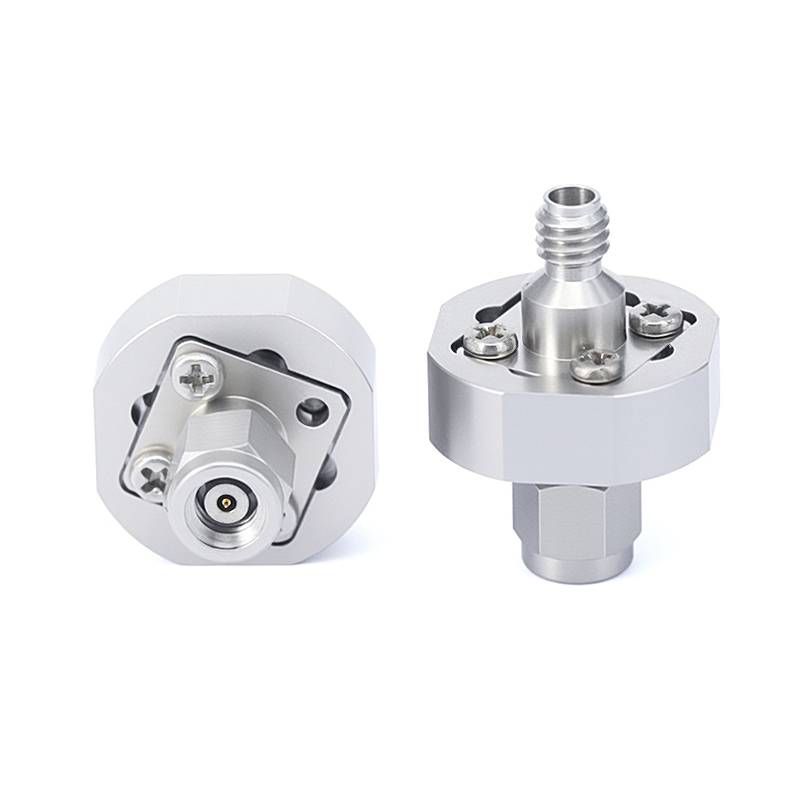

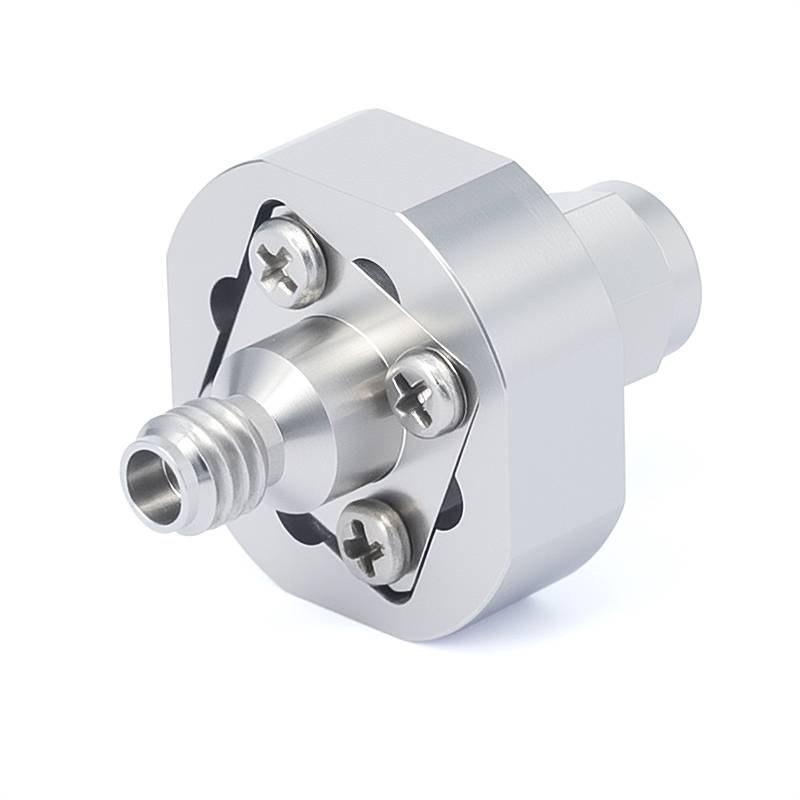

  • DC Block on Inner Conductor 1.0mm Male to 1.0mm Female | 300 KHz to 110 GHz | 30V
  •
Sold out
  • Sku: FR5-GDCB-110G-10-JK
  • Vendor: Flexi RF Inc

DC Block on Inner Conductor 1.0mm Male to 1.0mm Female | 300 KHz to 110 GHz | 30V

$1,999.00 USD
Shipping calculated at checkout.
Spend $500.00 to FREE SHIPPING

Product Datasheet

DATASHEET Available--->Click to download

Product Description

FR5-GDCB-110G-10-JK is a DC Block on Inner Conductor 1.0mm Male to 1.0mm Female | 300 KHz to 110 GHz | 30V coaxial DC Block that covers the frequency range from 300KHz-110GHz. This DC Block has a Stainless Steel body and ensures an excellent microwave performance with low insertion loss and VSWR / Return Loss of <2.2. This DC Block is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications.

This radio frequency DC Block is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 145 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector-In Series: 1.0mm
Connector-Out Series: 1.0mm
Connector-In Polarity: Standard
Connector-Out Polarity: Standard
Connector-In Gender: Female
Connector-In Impedance (Ohm): 50
Connector-Out Impedance (Ohm): 50
Block Type: Inner

Electrical Specifications:
VSWR: <2.2
Insertion Loss: ≤ 2dB
Power, Max Input (Watts): 1

Mechanical Data:
Connector In Body Material: Stainless Steel
Connector In Body Plating: Passivated
Connector Out Body Material: Stainless Steel
Connector Out Body Plating: Passivated
Body Material: Stainless Steel
Body Plating: Passivated
Mating Cycles, Min: ≥500

Environmental Specifications:
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
