  • DC Block on Inner Conductor 2.4mm Male to 2.4mm Female Operating from 10 MHz to 50 GHz
  •
  • Sku: FR5-GDCB-50G-24E
  • Vendor: Flexi RF Inc

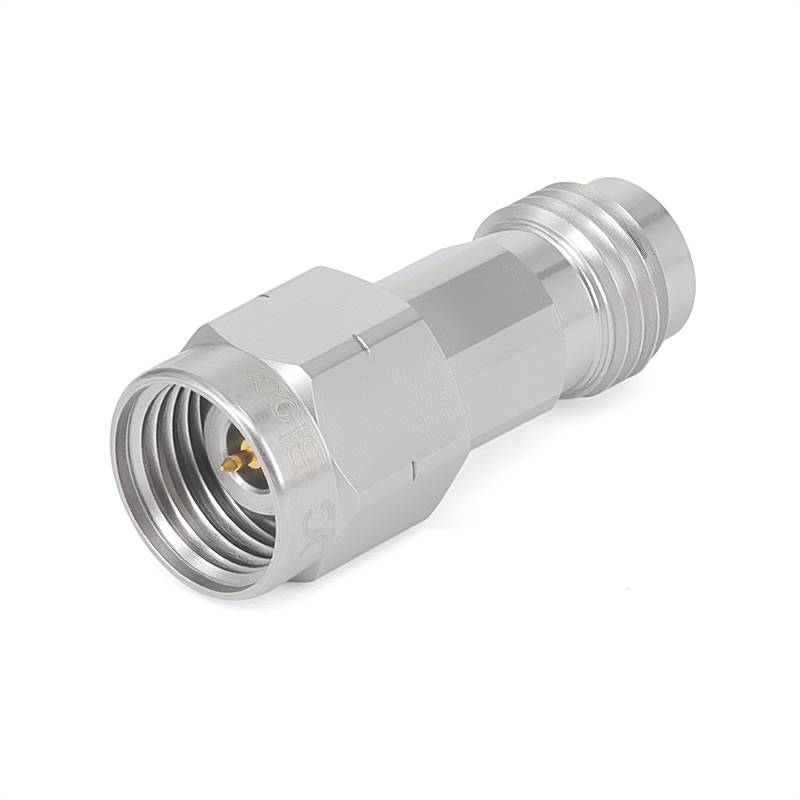

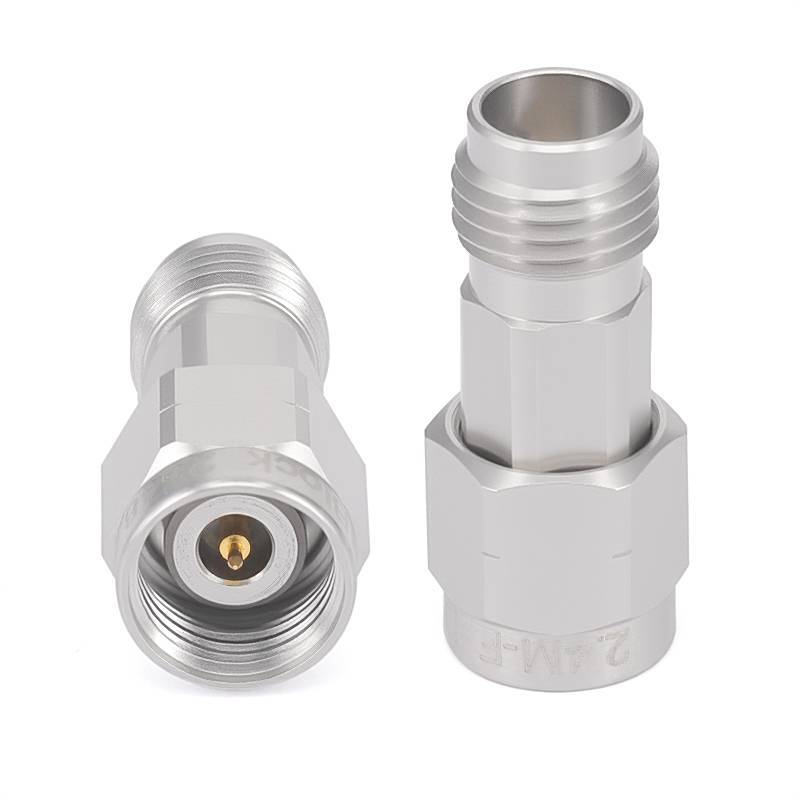

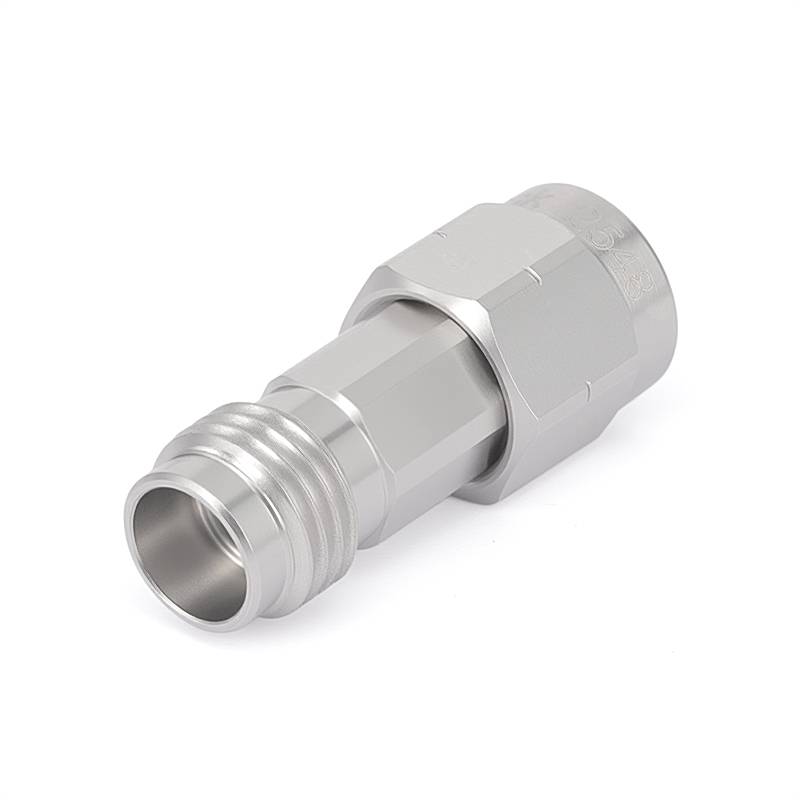

DC Block on Inner Conductor 2.4mm Male to 2.4mm Female Operating from 10 MHz to 50 GHz

$259.00 USD
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING

Product Datasheet

DATASHEET Available--->Click to download

Product Description

FR5-GDCB-50G-24E is a DC Block on Inner Conductor 2.4mm Male to 2.4mm Female Operating from 10 MHz to 50 GHz coaxial DC Block that covers the frequency range from 10MHz-50GHz. This DC Block has a Stainless Steel body and ensures an excellent microwave performance with low insertion loss and VSWR / Return Loss of <1.4. This DC Block is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications.

This radio frequency DC Block is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 145 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector-In Series: 2.4mm
Connector-Out Series: 2.4mm
Connector-In Polarity: Standard
Connector-Out Polarity: Standard
Connector-In Gender: Male
Connector-In Impedance (Ohm): 50
Connector-Out Impedance (Ohm): 50
Block Type: Inner

Electrical Specifications:
VSWR: <1.4
Insertion Loss: ≤0.6dB

Mechanical Data:
Connector In Body Material: Stainless Steel
Connector In Body Plating: Passivated
Connector Out Body Material: Stainless Steel
Connector Out Body Plating: Passivated
Body Material: Stainless Steel
Body Plating: Passivated
Mating Cycles, Min: ≥500

Environmental Specifications:
Operating Temperature Range: -55 ºC to +100 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
