  • DC Block on Inner Conductor 2.92mm Male to 2.92mm Female Operating from 10 MHz to 40 GHz
  •
  • Part Number: FR5-GDCB-40G-292E
  • Vendor: Flexi RF Inc

DC Block on Inner Conductor 2.92mm Male to 2.92mm Female Operating from 10 MHz to 40 GHz

$198.55 USD
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

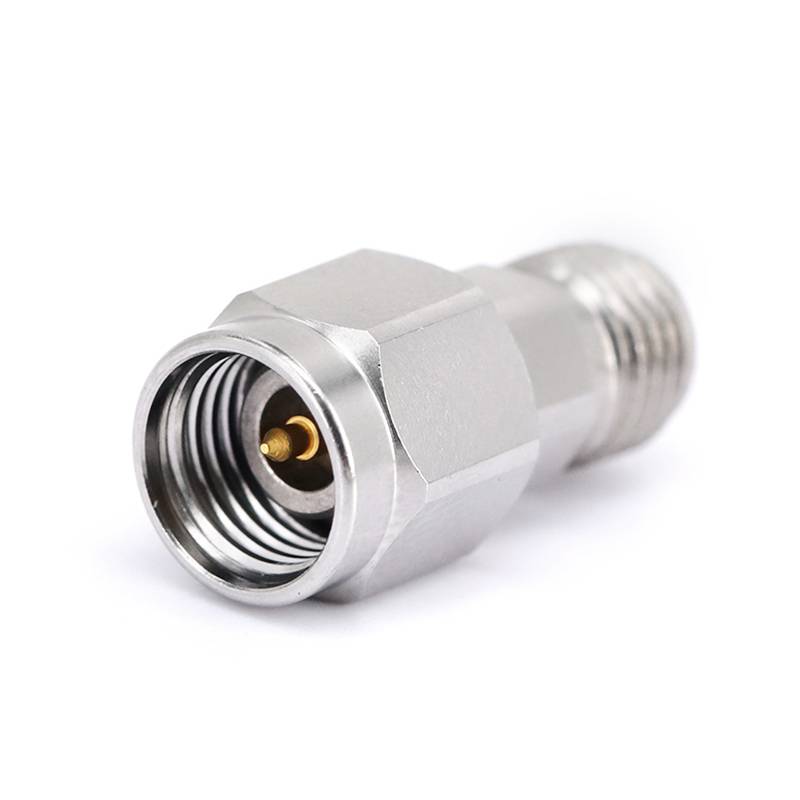

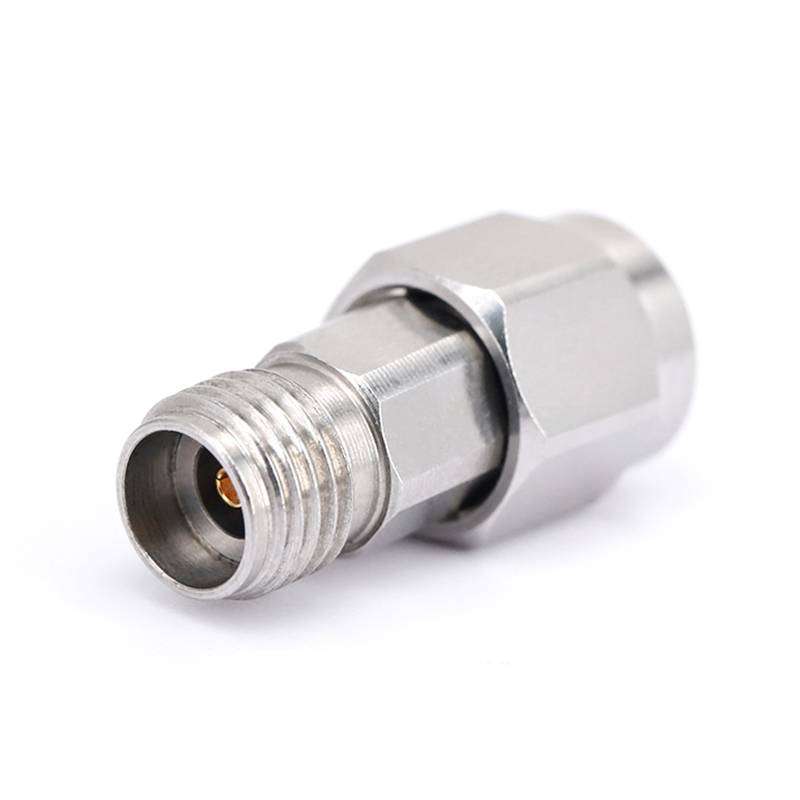

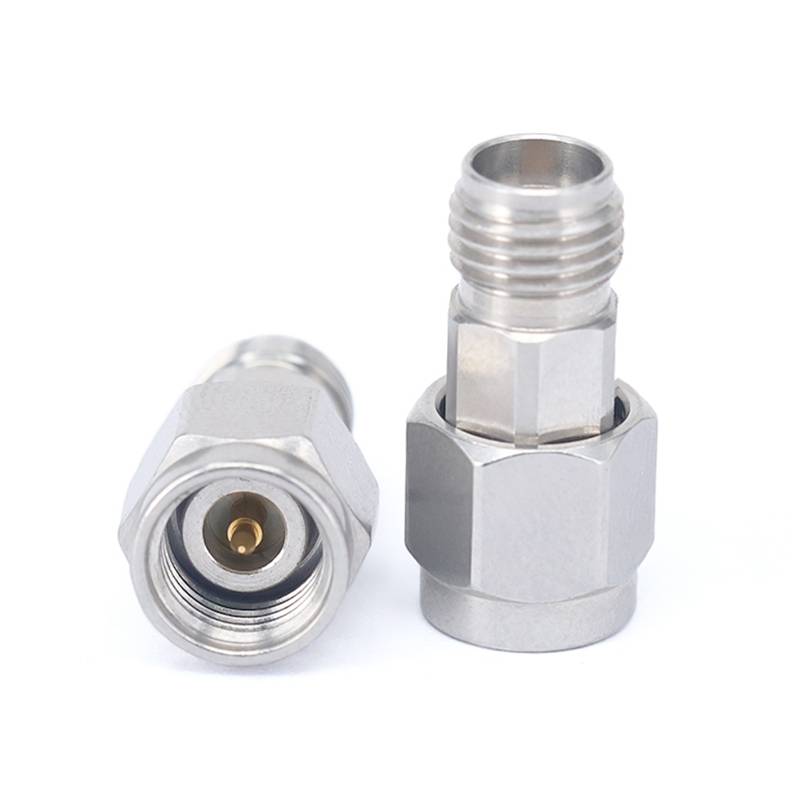

FR5-GDCB-40G-292E is a DC Block on Inner Conductor 2.92mm Male to 2.92mm Female Operating from 10 MHz to 40 GHz coaxial DC Block that covers the frequency range from 10MHz to 40GHz. This DC Block has a Stainless Steel body and ensures an excellent microwave performance with low insertion loss and VSWR of ＜1.3.This DC Block is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency DC Block is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector-In Series: 2.92mm
Connector-Out Series: 2.92mm
Connector-In Polarity: Standard
Connector-Out Polarity: Standard
Connector-In Gender: Male
Connector-In Impedance (Ohm): 50
Connector-Out Impedance (Ohm): 50
Block Type: Inner

Electrical Specifications:
VSWR: ＜1.3
Insertion Loss (dB): ≤0.5dB
Power, Max Input (Watts): 2

Mechanical Data:
Connector In Body Material: Stainless Steel
Connector In Body Plating: Passivated
Connector Out Body Material: Stainless Steel
Connector Out Body Plating: Passivated
Body Material: Stainless Steel
Body Plating: Passivated
Mating Cycles, Min: ≥500
Weight(g): 4.6

Environmental Specifications:
Operating Temperature Range: -55 ºC to +85 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
