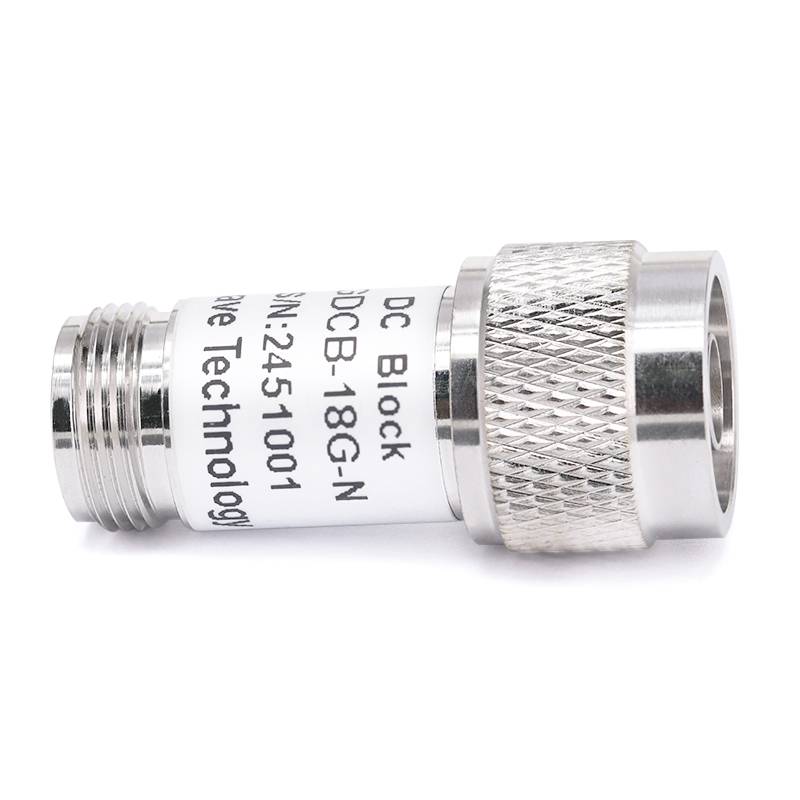

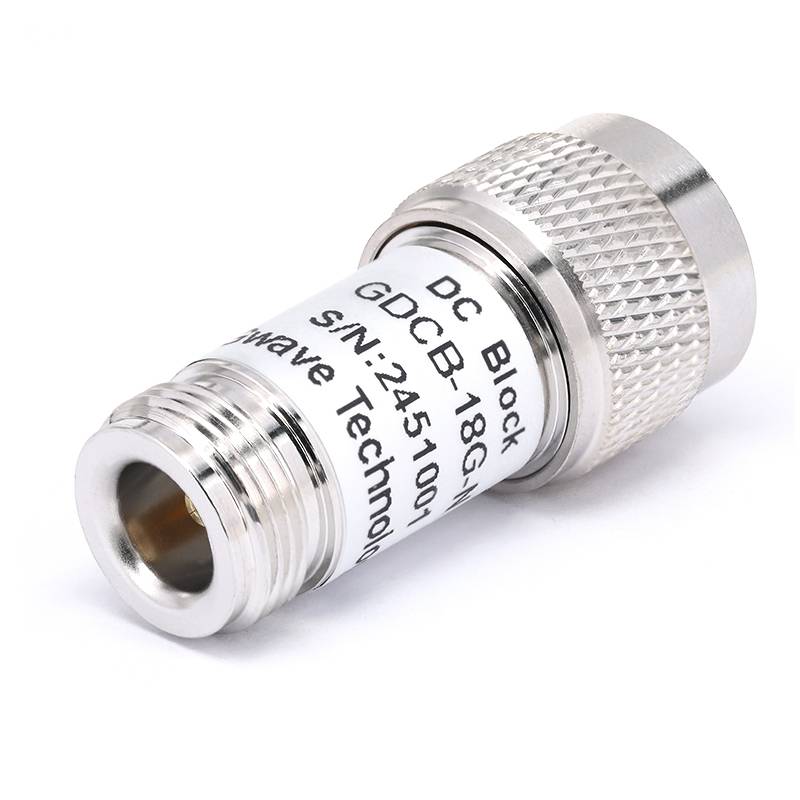

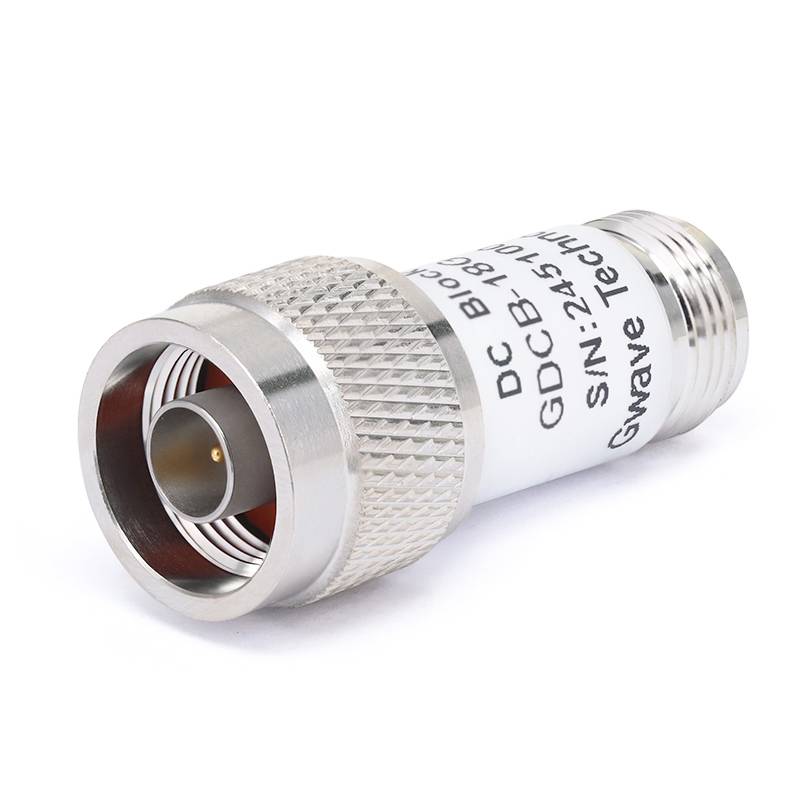

  • DC Block on Inner Conductor N Male to N Female | 100 MHz to 18 GHz | 100V
  •
Sold out
  • Sku: FR5-GDCB-18G-N
  • Vendor: Flexi RF Inc

DC Block on Inner Conductor N Male to N Female | 100 MHz to 18 GHz | 100V

$100.00 USD
Shipping calculated at checkout.
Spend $500.00 to FREE SHIPPING

Product Datasheet

DATASHEET Available--->Click to download

Product Description

FR5-GDCB-18G-N is a DC Block on Inner Conductor N Male to N Female | 100 MHz to 18 GHz | 100V coaxial DC Block that covers the frequency range from 0.1GHz to 18GHz. This DC Block has a Brass body and ensures an excellent microwave performance with low insertion loss and VSWR / Return Loss of ≤1.35. This DC Block is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications.

This radio frequency DC Block is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 145 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector-In Series: N
Connector-Out Series: N
Connector-In Polarity: Standard
Connector-Out Polarity: Standard
Connector-In Gender: Male
Connector-In Impedance (Ohm): 50
Connector-Out Impedance (Ohm): 50
Block Type: Inner

Electrical Specifications:
VSWR: ≤1.35
Insertion Loss: ≤1dB

Mechanical Data:
Connector In Body Material: Brass
Connector In Body Plating: Gold
Connector Out Body Material: Tin Bronze
Connector Out Body Plating: Gold
Body Material: Brass
Body Plating: Nickel
Mating Cycles, Min: ≥500

Environmental Specifications:
Operating Temperature Range: -40°C to +125°C
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
