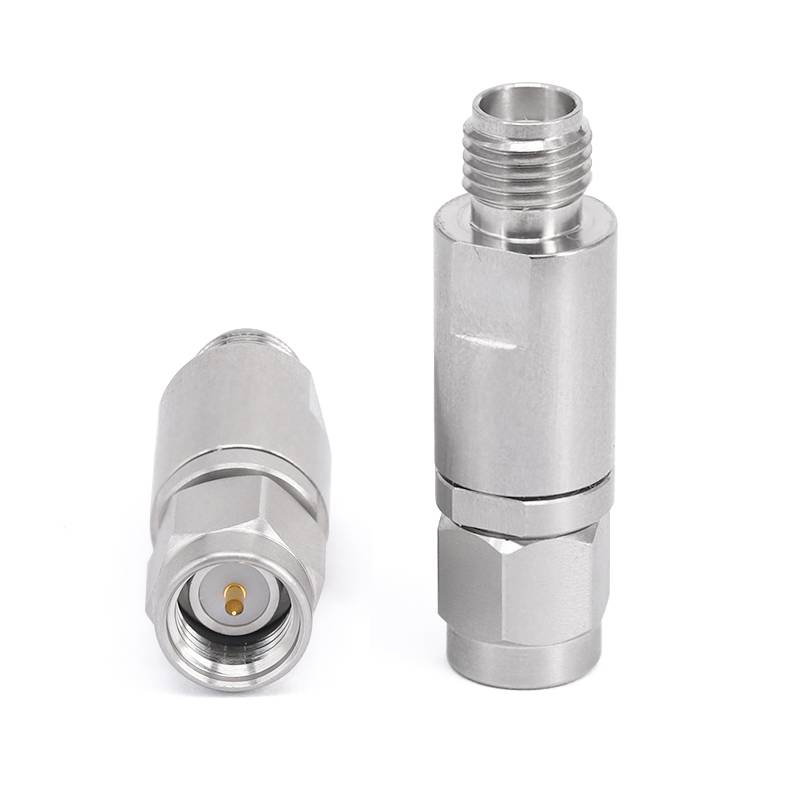

DC Block on Inner Conductor SMA Male to SMA Female Operating from 30 MHz to 27 GHz

$51.90 USD
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

FR5-GDCB-27G-SMA-JK is a DC Block on Inner Conductor SMA Male to SMA Female Operating from 30 MHz to 27 GHz coaxial DC Block that covers the frequency range from 30MHz-27GHz. This DC Block has a Stainless Steel body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.25. This DC Block is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency DC Block is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector-In Series: SMA
Connector-Out Series: SMA
Connector-In Polarity: Standard
Connector-Out Polarity: Standard
Connector-In Gender: Male
Connector-In Impedance (Ohm): 50
Connector-Out Impedance (Ohm): 50
Block Type: Inner

Electrical Specifications:
VSWR: 1.25
Insertion Loss (dB): ≤0.8dB
Power, Max Input (Watts): 2

Mechanical Data:
Connector In Body Material: Stainless Steel
Connector In Body Plating: Passivated
Connector Out Body Material: Stainless Steel
Connector Out Body Plating: Passivated
Body Material: Stainless Steel
Body Plating: Passivated
Mating Cycles, Min: ≥500

Environmental Specifications:
Operating Temperature Range: -55 ºC to +85 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
