  • Part Number: FR1-GPO-KK7
  • Vendor: Flexi RF Inc

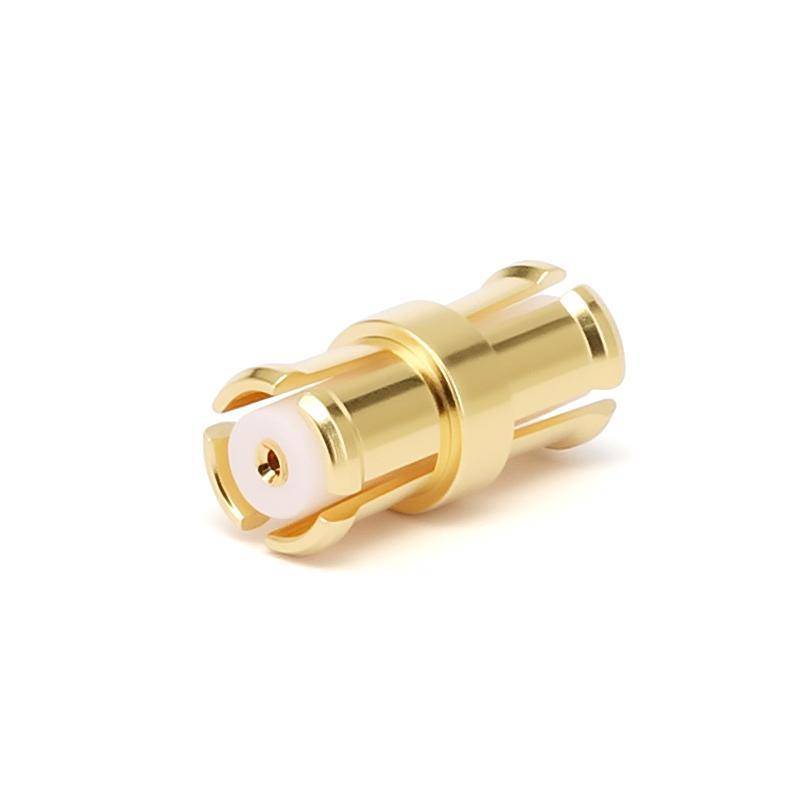

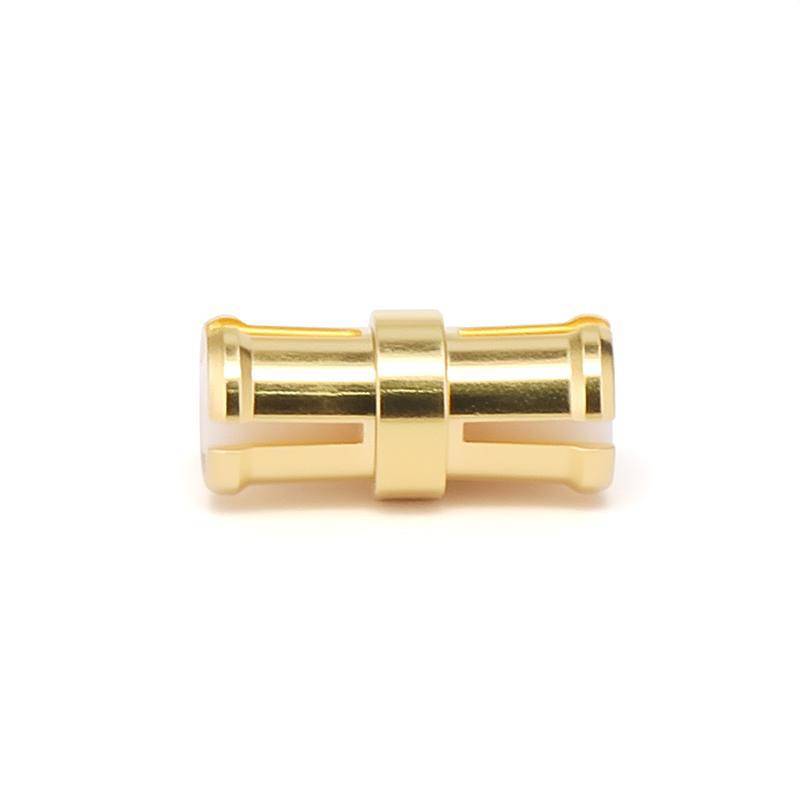

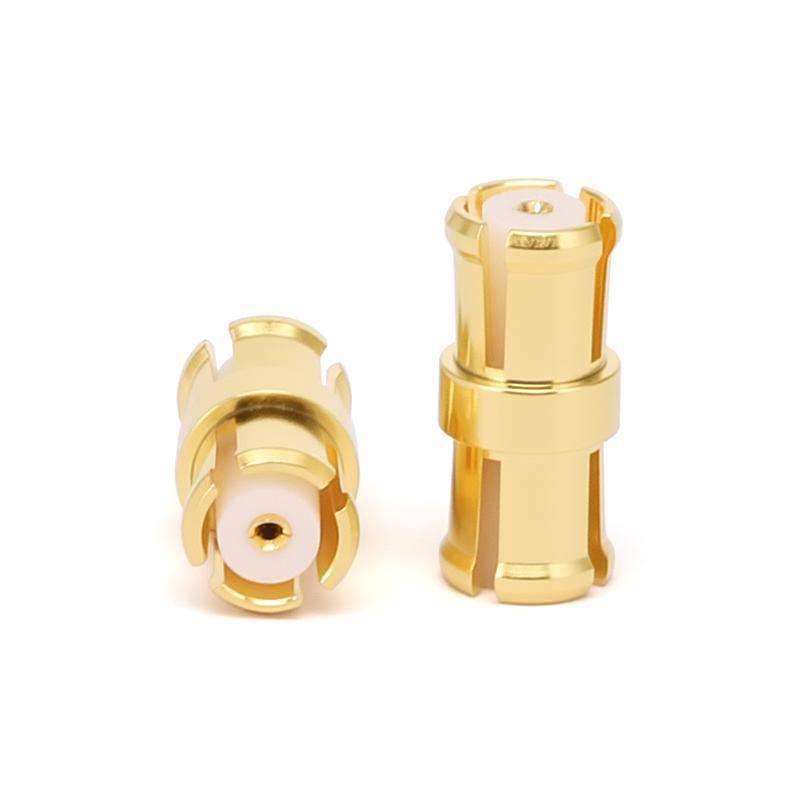

GPO(SMP) Female to GPO(SMP) Female Adapter, Length 7.5mm, DC - 18GHz

$14.08 USD
 per
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING

Product Description

FR1-GPO-KK7 is a GPO(SMP) Female to GPO(SMP) Female Adapter, Length 7.5mm, DC - 18GHz coaxial adapter that covers the frequency range from DC-18GHz. This adapter has a Straight body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.25.This adapter is precisely manufactured to RF industries like military&space, RF communication, test&measurement and industrial applications. The body of GPO(SMP) is made from Beryllium Copper and the body of GPO(SMP) is made from Beryllium Copper.The impedance of this adapter is 50 ohms to 50 ohms. Our GPO(SMP) Female to GPO(SMP) Female Adapter, Length 7.5mm, DC - 18GHz adapter has an operating temperature range of -55 ºC to +165 ºC.

This radio frequency adapter is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector 1 Series: GPO(SMP)
Connector 2 Series: GPO(SMP)
Connector 1 Polarity: Standard
Connector 2 Polarity: Standard
Body Style: Straight
Connector 1 Gender: Female
Connector 2 Gender: Female
Connector 1 Impedance (Ohm): 50
Connector 2 Impedance (Ohm): 50

Electrical Specifications:
Frequency: DC-18GHz
VSWR: 1.25
Insertion Loss: ≤0.1 xSqt.(f_GHz)

Mechanical Data:
Connector 1 Body Material: Beryllium Copper
Connector 1 Body Plating: Gold
Connector 2 Body Material: Beryllium Copper
Connector 2 Body Plating: Gold
Mating Cycles, Min: ≥500
Weight(g): 0.21

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
