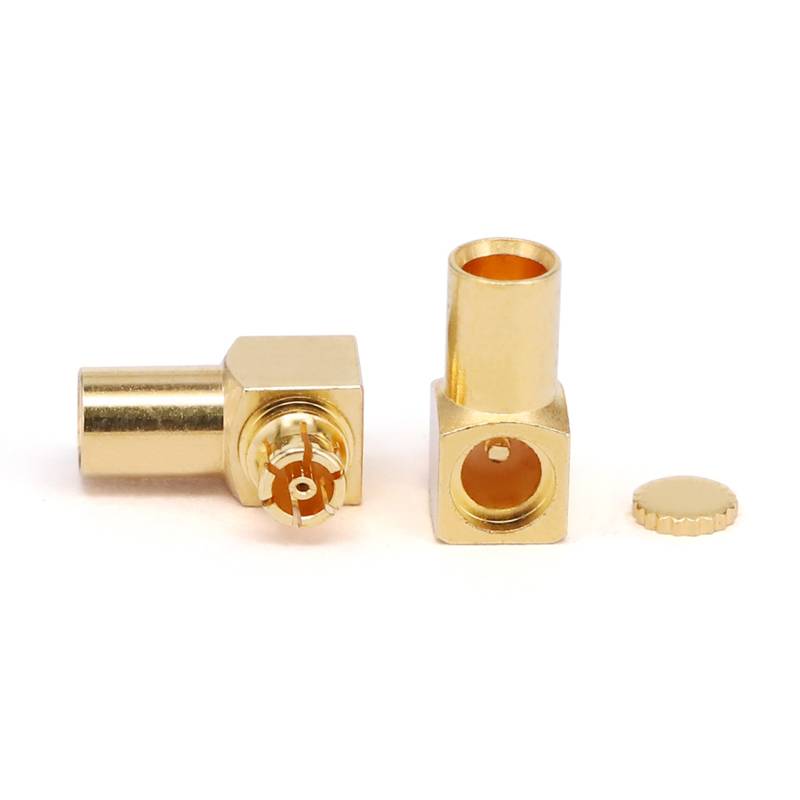

GPPO (Mini-SMP) Female Connector with Right Angle for .086' Series Cables, DC - 18GHz

$14.90 USD
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

FR2-GPPO-KWB2 is a GPPO (Mini-SMP) Female Connector with Right Angle for .086' Series Cables, DC - 18GHz coaxial connector that covers the frequency range from DC-18GHz. This connector has a Brass body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.1 to 6GHz, 1.23 to 12GHz, 1.32to 18GHz.This connector is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency connector is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: GPPO(Mini-SMP)
Connector Polarity: Standard
Body Style: Right Angle
Connector Gender: Female
Termination Type: Coax
Connector Impedance (Ohm): 50
Mount Method: None

Electrical Specifications:
Frequency: DC-18GHz
VSWR: 1.1 to 6GHz, 1.23 to 12GHz, 1.32to 18GHz
Insertion Loss: ≤0.1 xSqt.(f_GHz)

Mechanical Data:
Body Material: Brass
Body Plating: Gold
Mating Cycles, Min: ≥500
Weight(g): 0.45

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
