GPPO(Mini-SMP) Female RF Load Termination Up To 40 GHz | 0.5 Watts | Gold Plated Beryllium Copper

$51.00 USD
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING

Product Datasheet

DATASHEET Available--->Click to download

Product Description

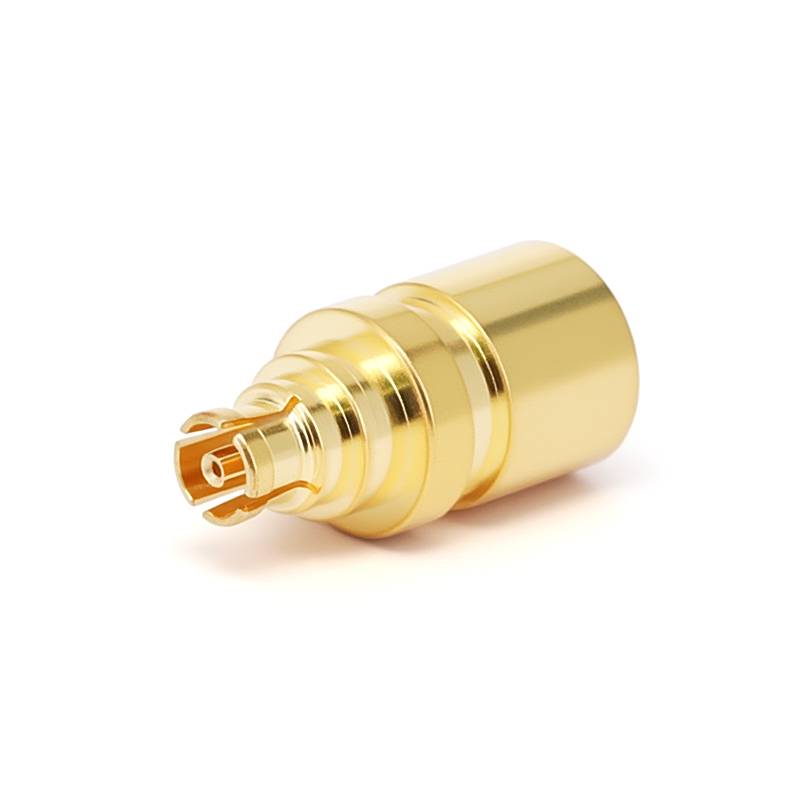

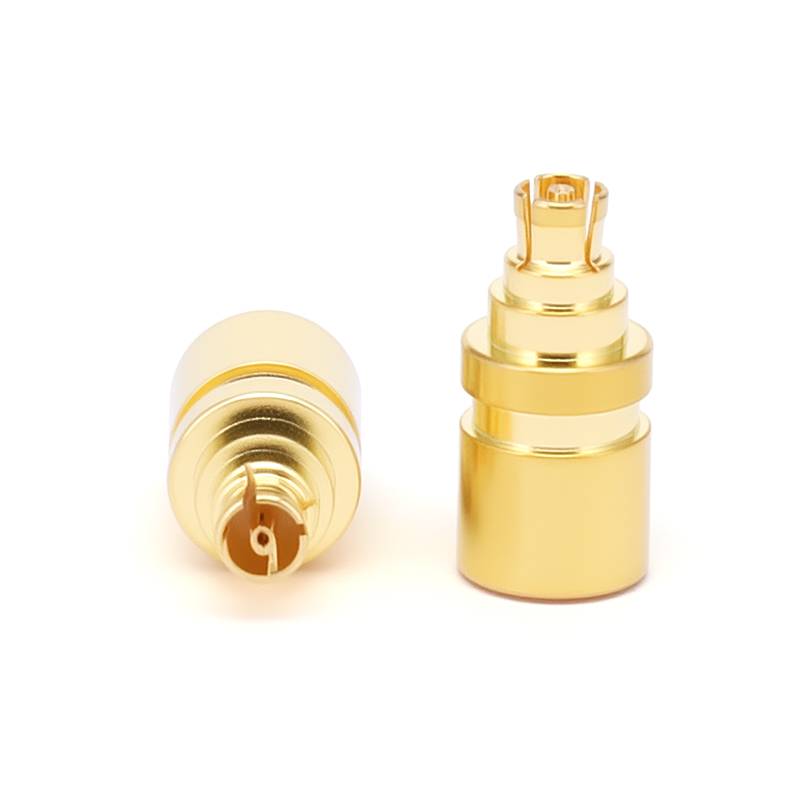

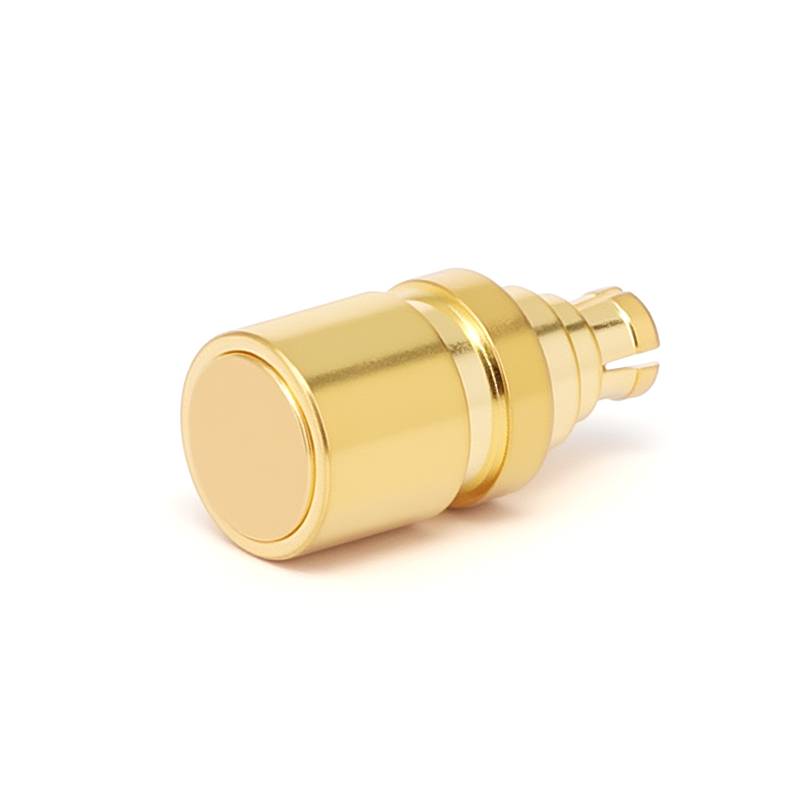

FR3-GPPO-K-03-3 is a GPPO(Mini-SMP) Female RF Load Termination Up To 40 GHz | 0.5 Watts | Gold Plated Beryllium Copper coaxial load that covers the frequency range from DC -40GHz. This load has a Beryllium Copper body and ensures an excellent microwave performance with low insertion loss and VSWR / Return Loss of 1.2. This load is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications.

This radio frequency load is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 145 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: GPPO(Mini-SMP)
Connector Polarity: Standard
Connector Gender: Female
Connector Impedance (Ohm): 50

Electrical Specifications:
Frequency: DC -40GHz
VSWR: 1.2
Power, Max Input (Watts): 0.5

Mechanical Data:
Body Material: Beryllium Copper
Body Plating: Gold
Mating Cycles, Min: ≥500
Weight (g): 0.73
Cryogenic: No
Non-Magnetic: No

Environmental Specifications:
Operating Temperature Range: -55 ºC to +125 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
