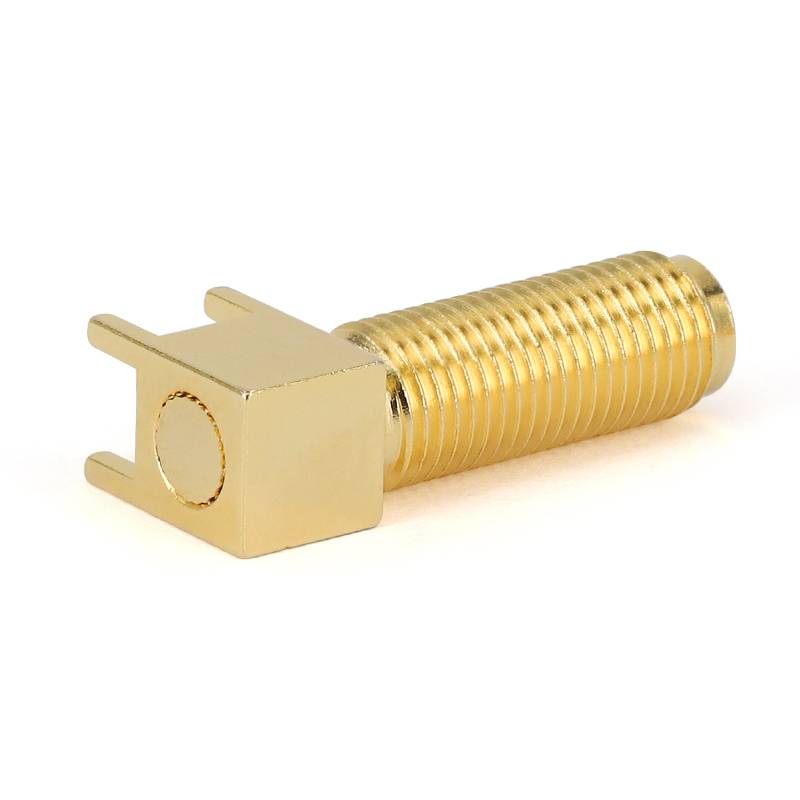

SMA Female Connector PCB Mount Soldering,Right Angle,DC - 6GHz

$6.23 USD
Shipping calculated at checkout.
In stock!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

FR2-SMA-KWHD17 is a SMA Female Connector PCB Mount Soldering,Right Angle,DC - 6GHz coaxial connector that covers the frequency range from DC-6GHz. This connector has a Brass body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.25.This connector is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency connector is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: SMA
Connector Polarity: Standard
Body Style: Right Angle
Connector Gender: Female
Termination Type: PCB
Connector Impedance (Ohm): 50
Mount Method: None

Electrical Specifications:
Frequency: DC-6GHz
VSWR: 1.25
Insertion Loss: ≤0.05 xSqt.(f_GHz)

Mechanical Data:
Body Material: Brass
Body Plating: Gold
Mating Cycles, Min: ≥500

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
