  • SMA Male to SMA Female Adjustable Phase Trimmer, 360 Degrees Phase Range, DC - 18GHz
  •
  • Sku: GDL22-T50
  • Vendor: Flexi RF Inc

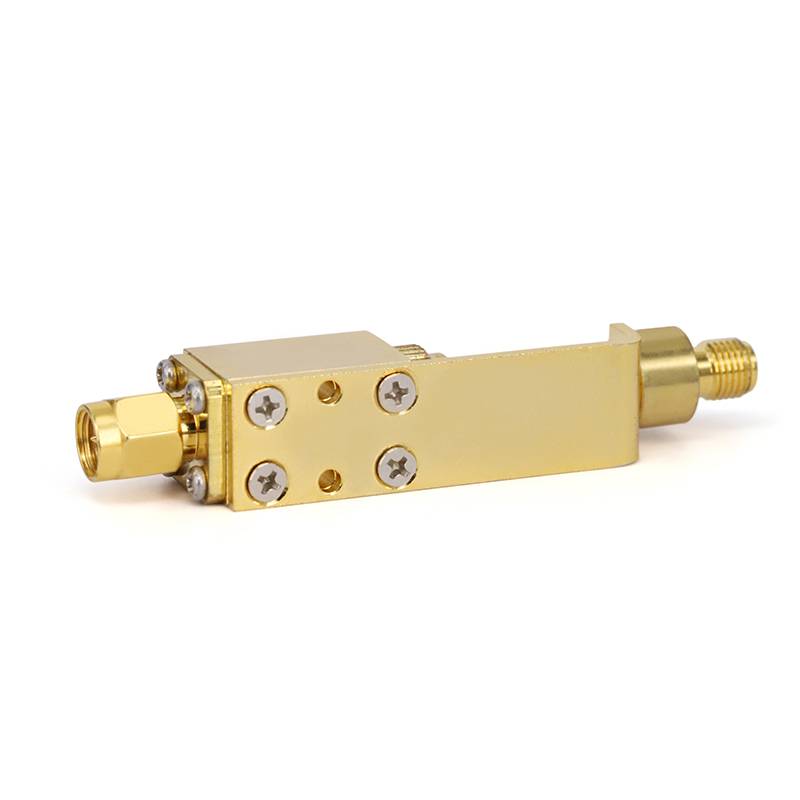

SMA Male to SMA Female Adjustable Phase Trimmer, 360 Degrees Phase Range, DC - 18GHz

$299.90 USD
Shipping calculated at checkout.
Just 2 left. Order soon!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

GDL22-T50 is a SMA Male to SMA Female Adjustable Phase Trimmer, 360 Degrees Phase Range, DC - 18GHz coaxial phase trimmer that covers the frequency range from DC-18GHz. This phase trimmer has a Brass body material and ensures an excellent microwave performance with low insertion loss and VSWR of 1.6.This phase trimmer is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency phase trimmer is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector-In Series: SMA
Connector-Out Series: SMA
Connector-In Polarity: Standard
Connector-Out Polarity: Standard
Connector-In Gender: Male
Connector-Out Gender: Female
Connector-In Impedance (Ohm): 50
Connector-Out Impedance (Ohm): 50

Electrical Specifications:
Frequency Range: DC-18GHz
VSWR: 1.6
Adjustable Phase: 360°

Mechanical Data:
Body Material: Brass
Body Plating: Gold
Weight(g): 50.3

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
