  • Part Number: FR1-SMA/SSMA-JJ
  • Vendor: Flexi RF Inc

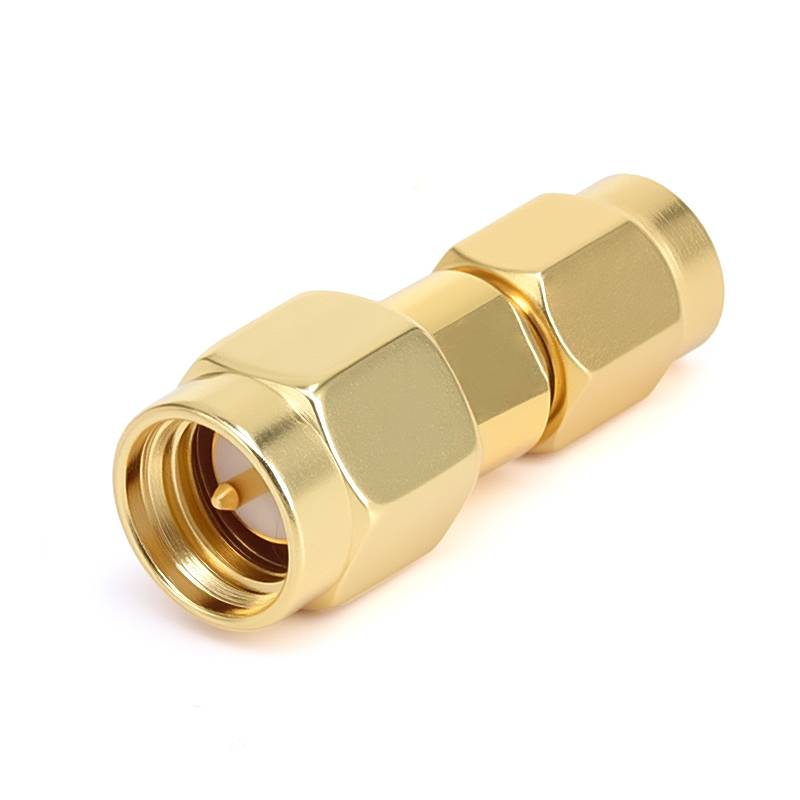

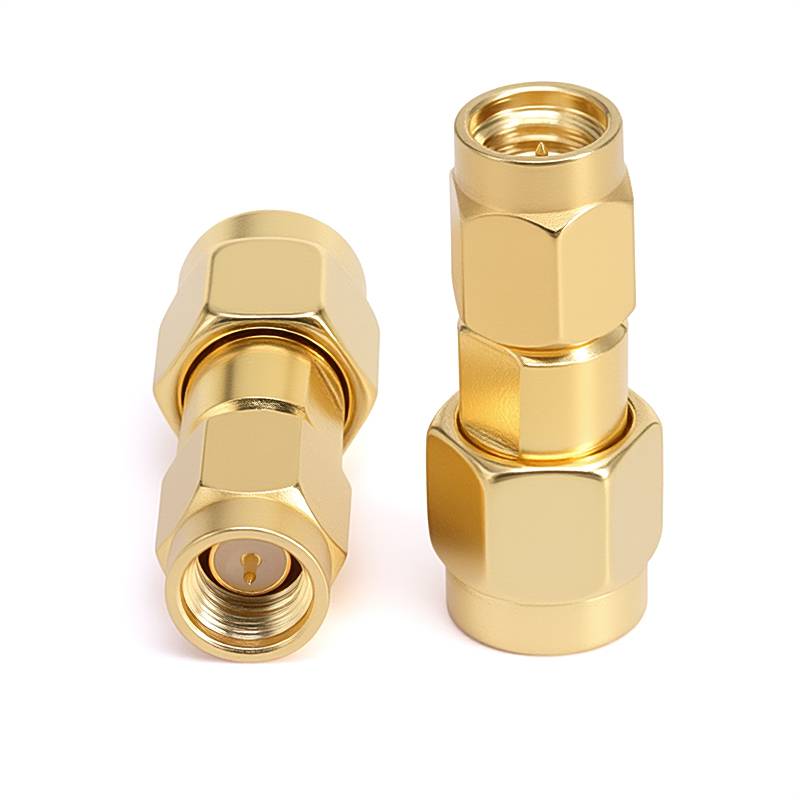

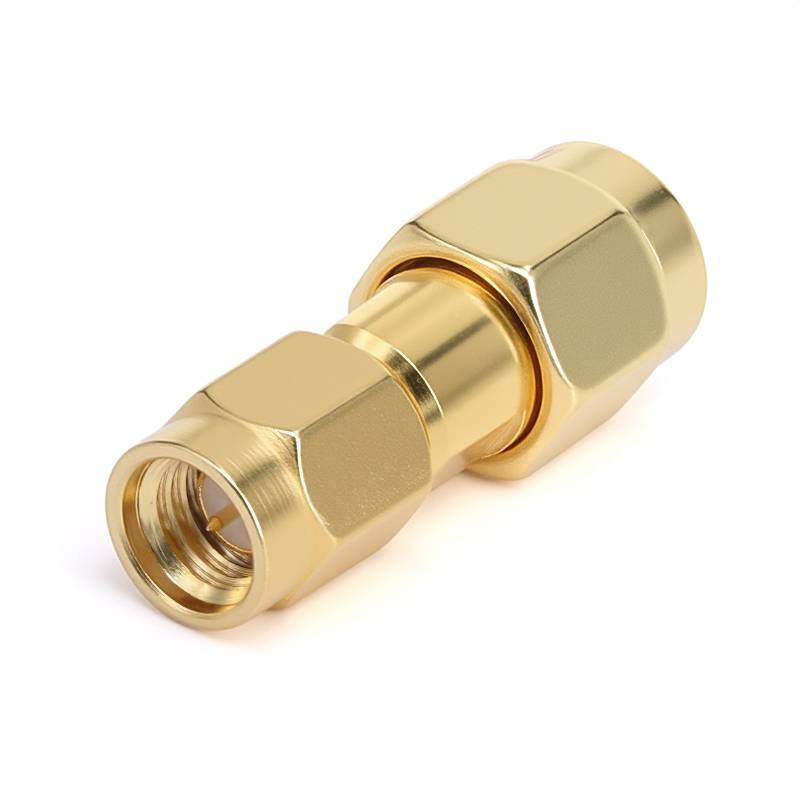

SMA Male to SSMA Male Adapter, DC - 27GHz

$10.20 USD
Shipping calculated at checkout.
Just 5 left. Order soon!
Spend $500.00 to FREE SHIPPING

Product Description

FR1-SMA/SSMA-JJ is a SMA Male to SSMA Male Adapter, DC - 27GHz coaxial adapter that covers the frequency range from DC-27GHz. This adapter has a Straight body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.25.This adapter is precisely manufactured to RF industries like military&space, RF communication, test&measurement and industrial applications. The body of SMA is made from Brass and the body of SSMA is made from Brass.The impedance of this adapter is 50 ohms to 50 ohms. Our SMA Male to SSMA Male Adapter, DC - 27GHz adapter has an operating temperature range of -55 ºC to +165 ºC.

This radio frequency adapter is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.


Product Configuration:
Connector 1 Series: SMA
Connector 2 Series: SSMA
Connector 1 Polarity: Standard
Connector 2 Polarity: Standard
Body Style: Straight
Connector 1 Gender: Male
Connector 2 Gender: Male
Connector 1 Impedance (Ohm): 50
Connector 2 Impedance (Ohm): 50

Electrical Specifications:
Frequency: DC-27GHz
VSWR: 1.25
Insertion Loss: ≤0.1 xSqt.(f_GHz)

Mechanical Data:
Connector 1 Body Material: Brass
Connector 1 Body Plating: Gold
Connector 2 Body Material: Brass
Connector 2 Body Plating: Gold
Mating Cycles, Min: ≥500
Weight(g): 4.5

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
