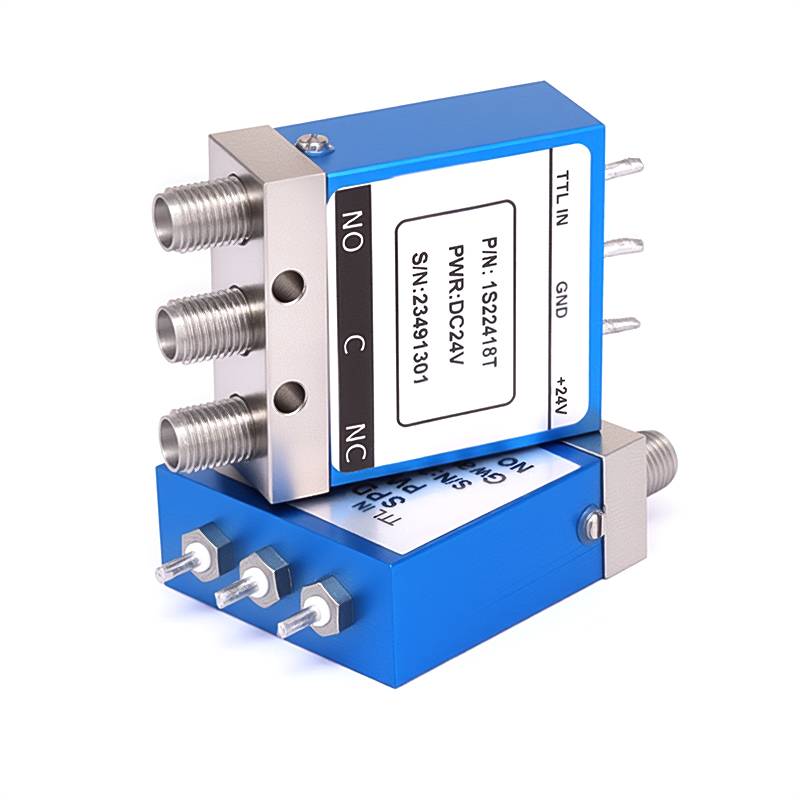

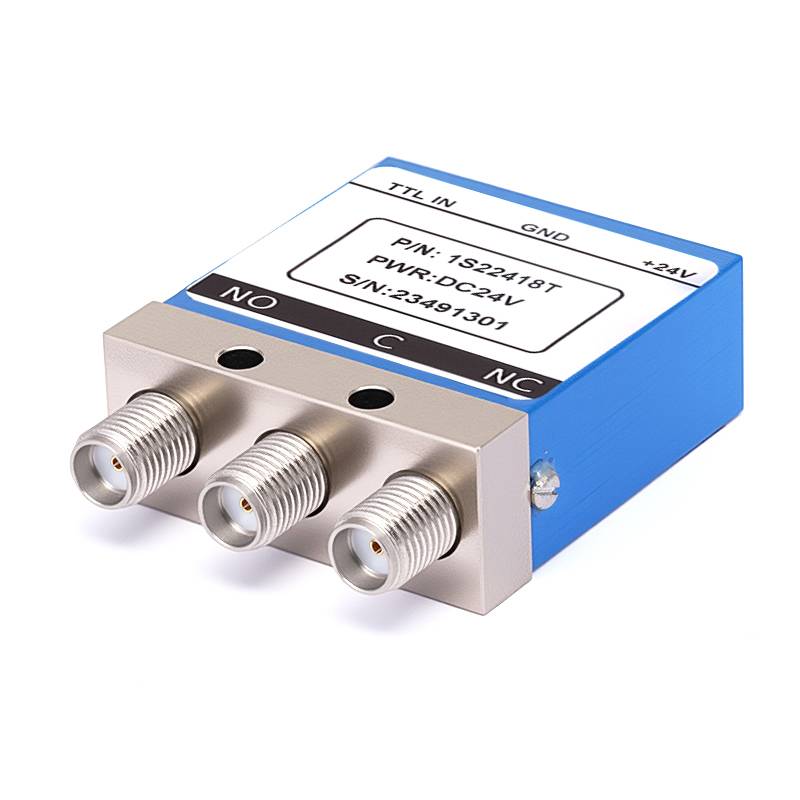

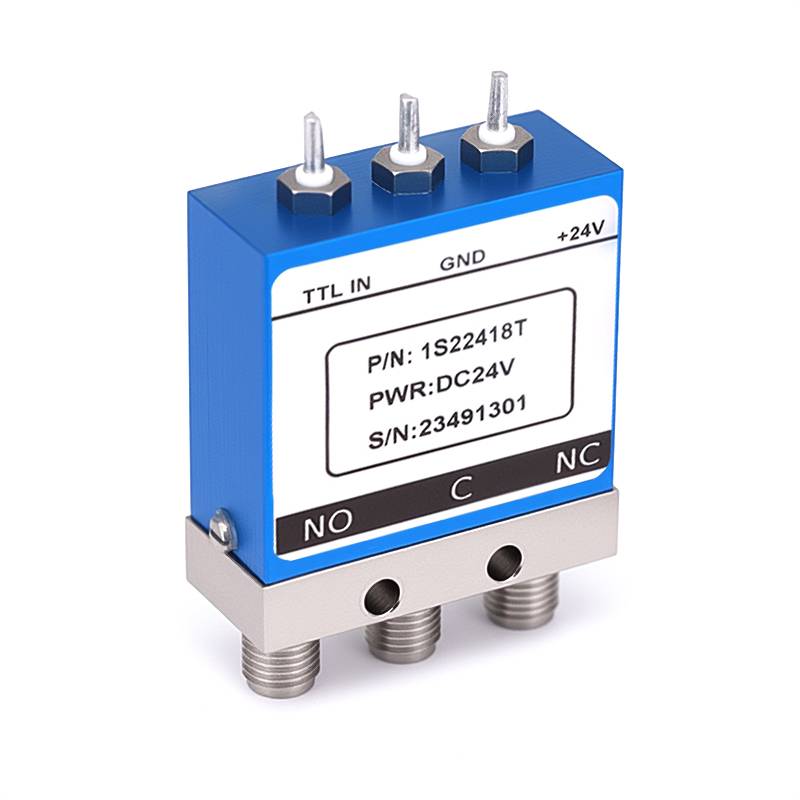

SPDT Electromechanical Relay Failsafe Switch, TTL, SMA Female, DC - 18GHz, 24V

$155.90 USD
Shipping calculated at checkout.
Just 2 left. Order soon!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

GSP2T2418TTL is a SPDT Electromechanical Relay Failsafe Switch, TTL, SMA Female, DC - 18GHz, 24V coaxial RF switch that covers the frequency range from DC-18GHz. This RF switch has a housing material and ensures an excellent microwave performance with low insertion loss and VSWR, Max Input of 1.5.This RF switch is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency RF switch is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: SMA
Connector Polarity: Standard
Connector Gender: Female
Connector Impedance (Ohm): 50
Control Interface: Solder Pin
Switch Type: Terminated
Switch Design: SPDT

Electrical Specifications:
Frequency Range: DC-18GHz
VSWR, Max Input: 1.5
Insertion Loss, Max Input: 0.3 to 6GHz, 0.4 to 12GHz, 0.5 to 18GHz
Isolation Min. (dB): 70
Maximum Speed, ms: 15ms
Control Volt (Volts): 24
Power, Max Input (Watts): 80
Current, DC (mA): 100

Mechanical Data:
Colour: Blue
Mating Cycles, Min: ≥500
Weight(g): 40.3

Environmental Specifications:
Operating Temperature Range: -25°C to +60°C
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
