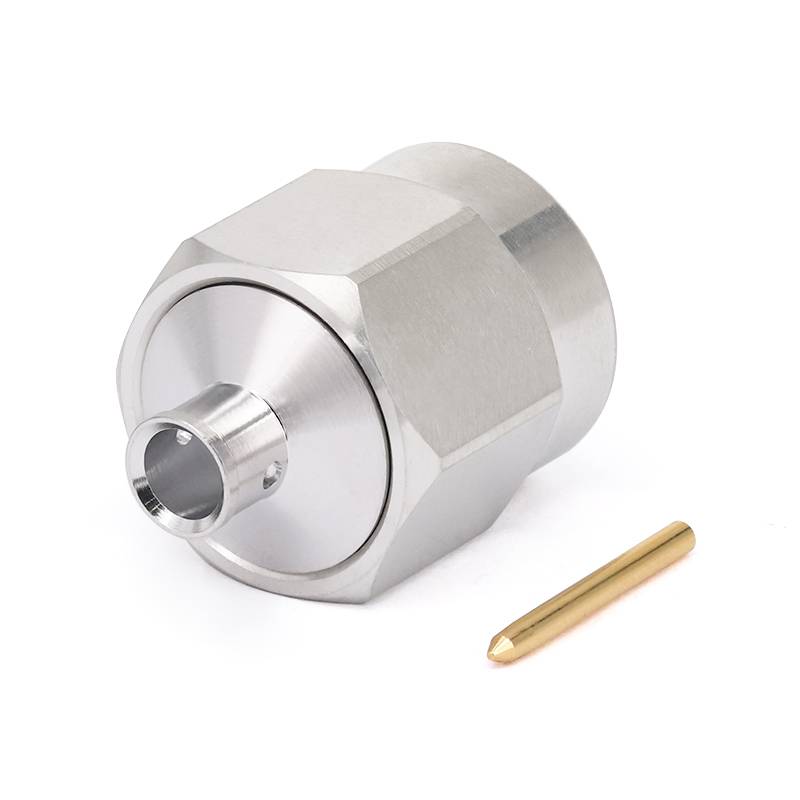

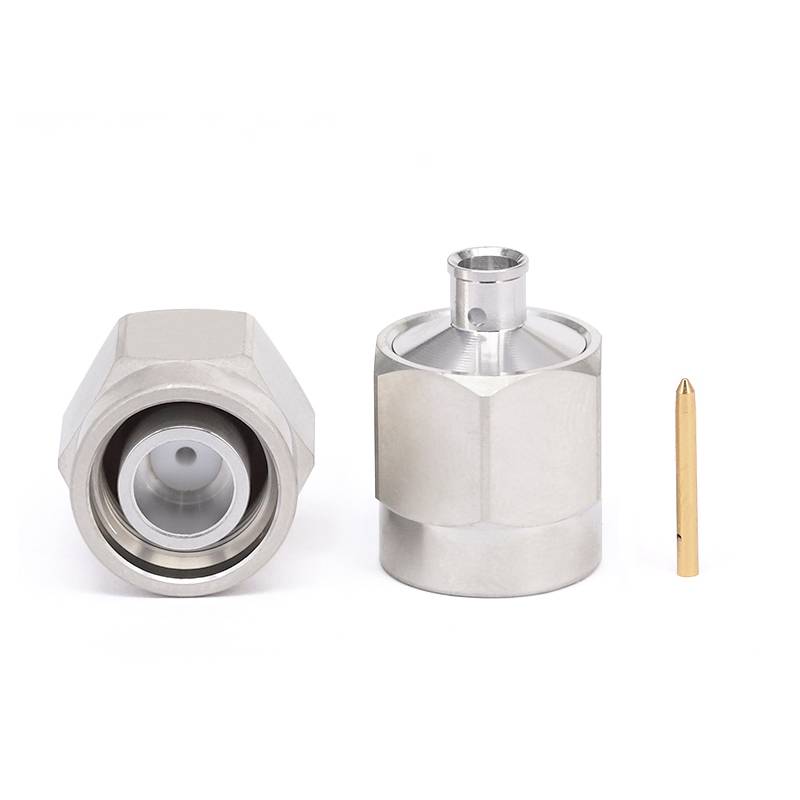

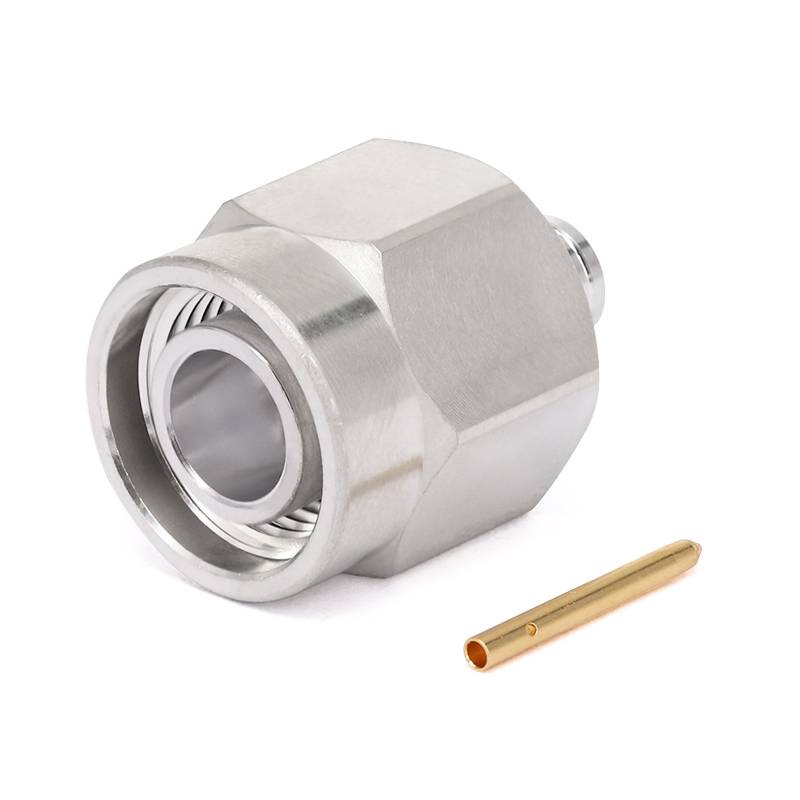

TNC Male Connector for .141"Series Cables | DC - 18GHz

$6.50 USD
Shipping calculated at checkout.
Spend $500.00 to FREE SHIPPING

Product Datasheet

DATASHEET Available--->Click to download

Product Description

FR2-TNC-JB3 is a TNC Male Connector for .141"Series Cables | DC - 18GHz coaxial connector that covers the frequency range from DC - 18GHz. This connector has a Beryllium Copper body and ensures an excellent microwave performance with low insertion loss and VSWR / Return Loss of 1.3 to 18GHz. This connector is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications.

This radio frequency connector is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 145 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: TNC
Connector Polarity: Standard
Body Style: Straight
Connector Gender: Male
Termination Type: Coax
Connector Impedance (Ohm): 50
Mount Method: None

Electrical Specifications:
Frequency: DC - 18GHz
VSWR: 1.3 to 18GHz
Insertion Loss: ≤ 0.05 x Sqrt.(f_GHz)
RF Leakage: 90dB

Mechanical Data:
Body Material: Beryllium Copper
Body Plating: Passivated
Mating Cycles, Min: ≥500

Environmental Specifications:
Operating Temperature Range: -55 ºC to +165 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
