  • WR-10 Rectangular Standard Gain Horn Antenna 25 dBi Typical Gain,W Band -75 to 110 GHz
  •
Sold out
  • Sku: GHA7501100-WR10-25
  • Vendor: Flexi RF Inc

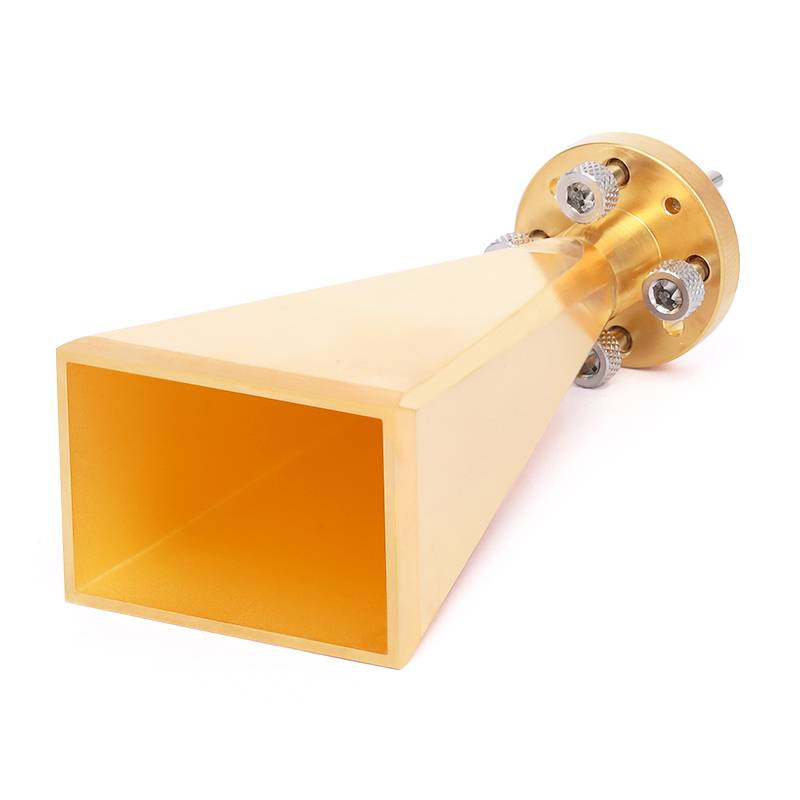

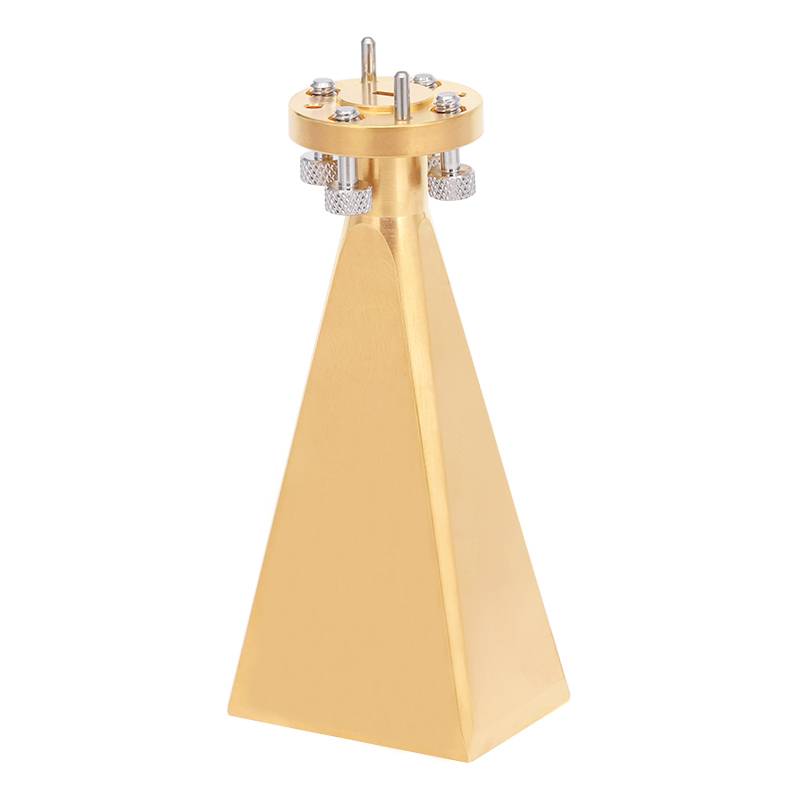

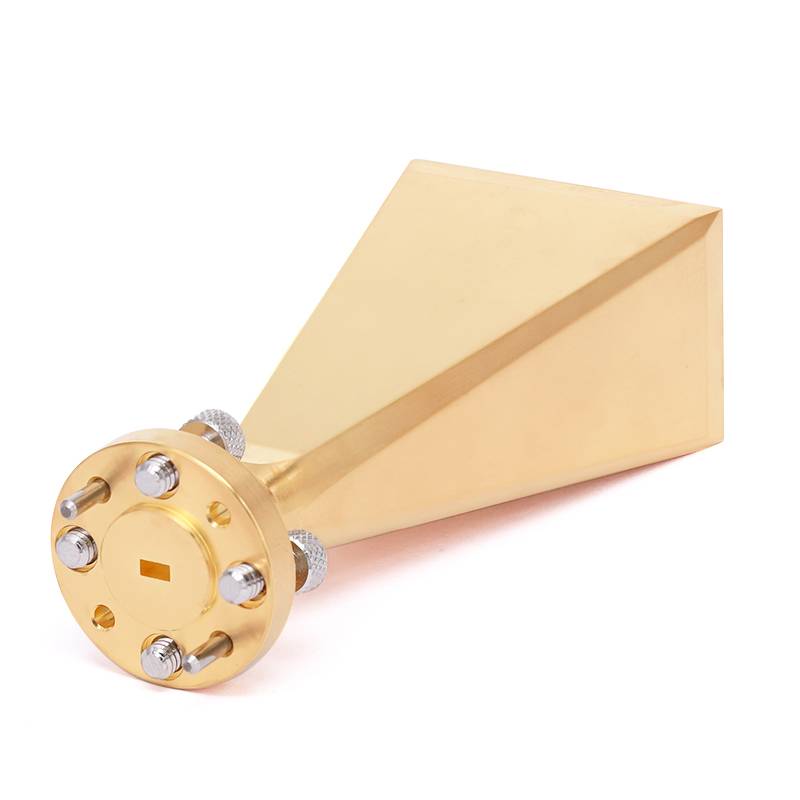

WR-10 Rectangular Standard Gain Horn Antenna 25 dBi Typical Gain,W Band -75 to 110 GHz

$899.90 USD
Shipping calculated at checkout.
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

GHA7501100-WR10-25 is a WR-10 Rectangular Standard Gain Horn Antenna 25 dBi Typical Gain,W Band -75 to 110 GHz RF antenna that covers the frequency range from . This antenna has a Brass body and ensures an excellent microwave performance with high gain 25 dBi and VSWR of 1.1. This antenna is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency antenna is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: WR10
Connector Polarity: Standard
Antenna Type: Horn
Flange Designation: UG-385/U

Electrical Specifications:
Directionality: Directional
Polarization: Linear
Number of Bands: Wide
Gain, Typical (dBi): 25
Power, Max Input (Watts): 2
Beam Width, 3dB H (Deg): 5
Beam Width, 3dB V (Deg): 5

Mechanical Data:
Body Material: Brass
Radome Material: None
Colour: Golden
Weight(g): 50

Environmental Specifications:
Operating Temperature Range: -45 ºC to +85 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
