  • WR-19 Rectangular Standard Gain Horn Antenna 25 dBi Typical Gain,U Band 39.2 to 59.6GHz
  •
Sold out
  • Sku: GHA392596-WR19-25
  • Vendor: Flexi RF Inc

WR-19 Rectangular Standard Gain Horn Antenna 25 dBi Typical Gain,U Band 39.2 to 59.6GHz

$899.00 USD
Shipping calculated at checkout.
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

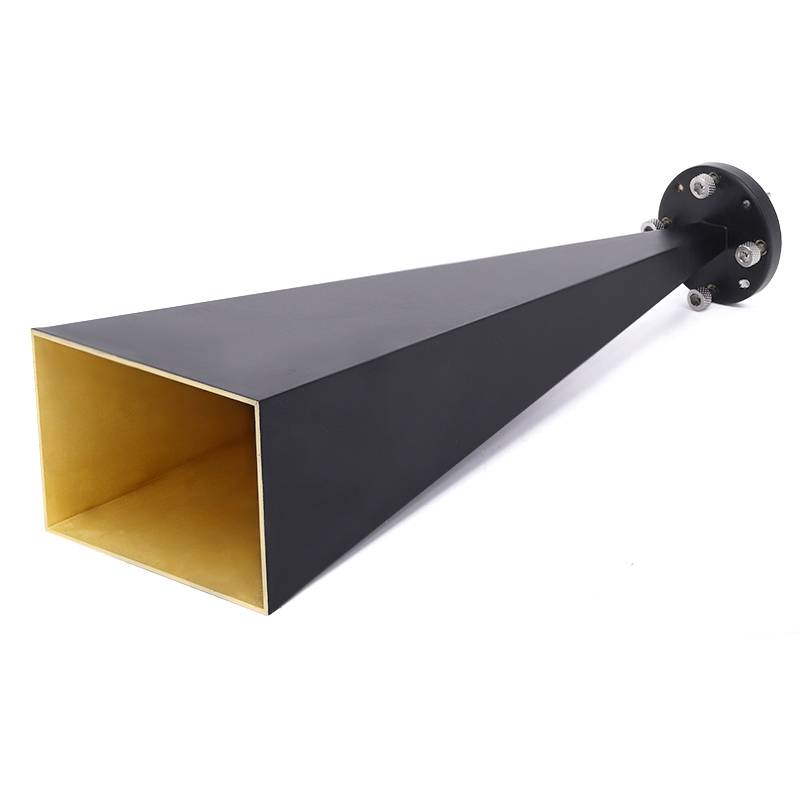

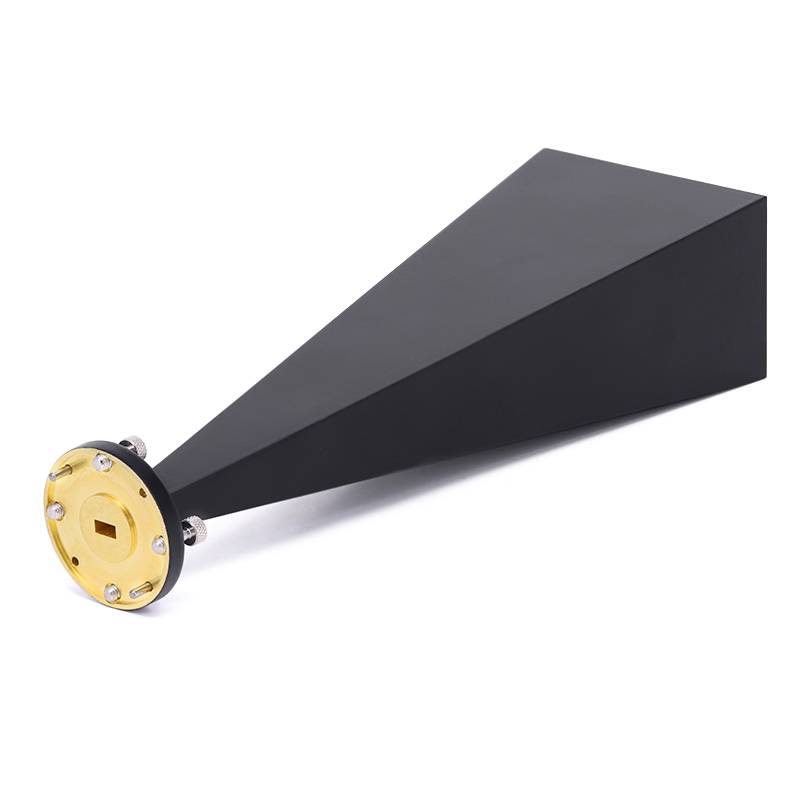

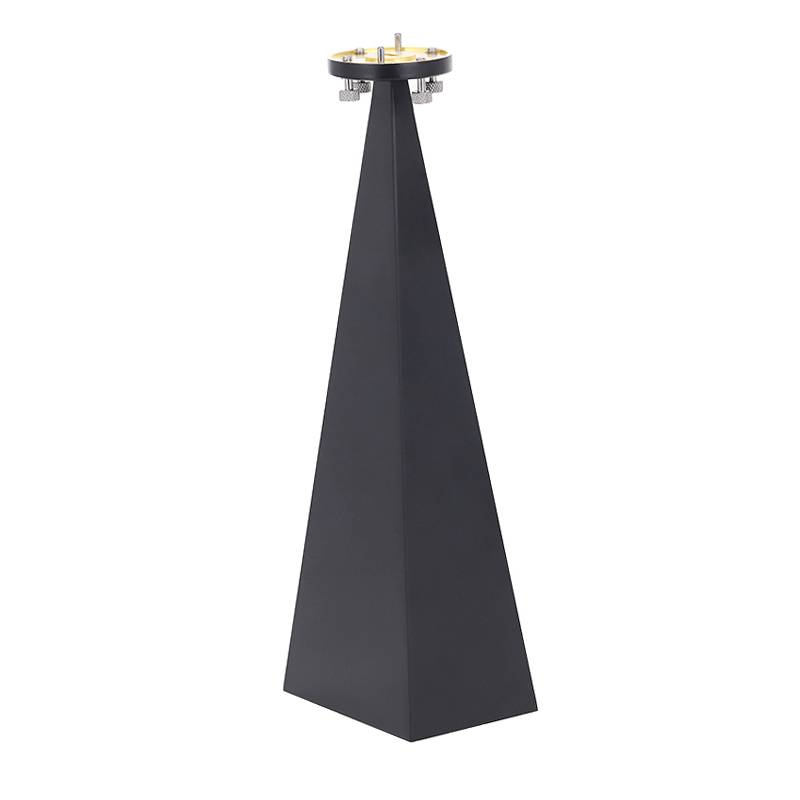

GHA392596-WR19-25 is a WR-19 Rectangular Standard Gain Horn Antenna 25 dBi Typical Gain,U Band 39.2 to 59.6GHz RF antenna that covers the frequency range from . This antenna has a Brass body and ensures an excellent microwave performance with high gain 25 dBi and VSWR of 1.25. This antenna is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency antenna is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: WR19
Connector Polarity: Standard
Connector Impedance (Ohm): 50
Antenna Type: Horn
Flange Designation: UG-383/U

Electrical Specifications:
Polarization: Linear
Number of Bands: Wide
Gain, Typical (dBi): 25
Beam Width, 3dB H (Deg): 7°~12°
Beam Width, 3dB V (Deg): 7°~12°

Mechanical Data:
Body Material: Brass
Radome Material: None
Colour: Golden
Weight(g): 500

Environmental Specifications:
Operating Temperature Range: -55 ºC to +125 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.

Same-Day Shipping
Custom Design Available
View full details

WR-19 Rectangular Standard Gain Horn Antenna 25 dBi Typical Gain,U Band 39.2 to 59.6GHz

$899.00 USD
