WR-22 Rectangular Standard Gain Horn Antenna 25 dBi Typical Gain, U Band 32.9 to 50.1GHz

$699.00 USD
Shipping calculated at checkout.
Just 2 left. Order soon!
Spend $500.00 to FREE SHIPPING
 More payment options

Pickup available at 3070 Scott Blvd.

Usually ready in 24 hours
DATASHEET Available--->Click to download

Product Description

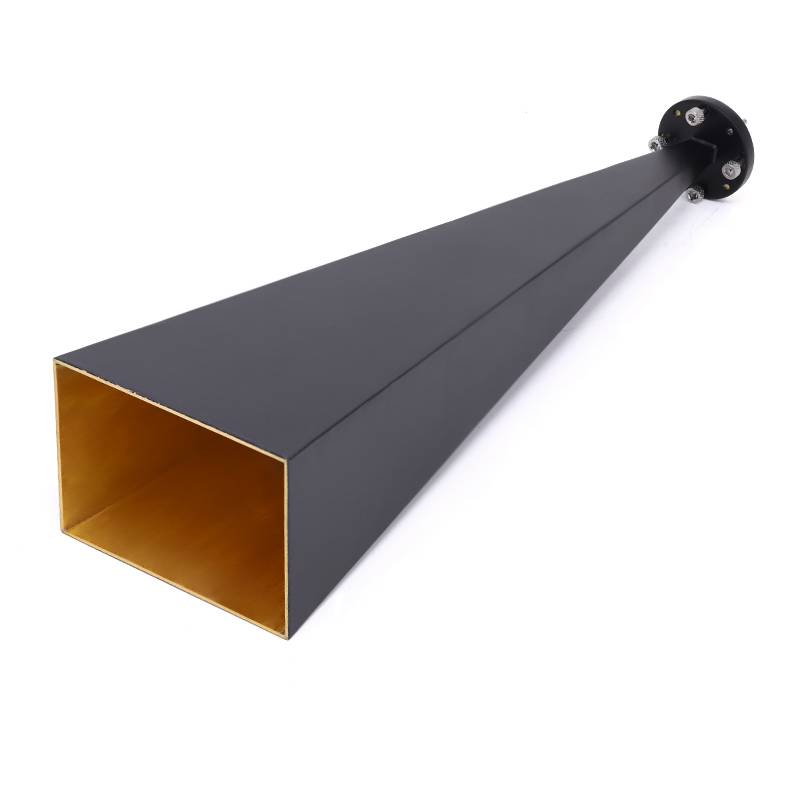

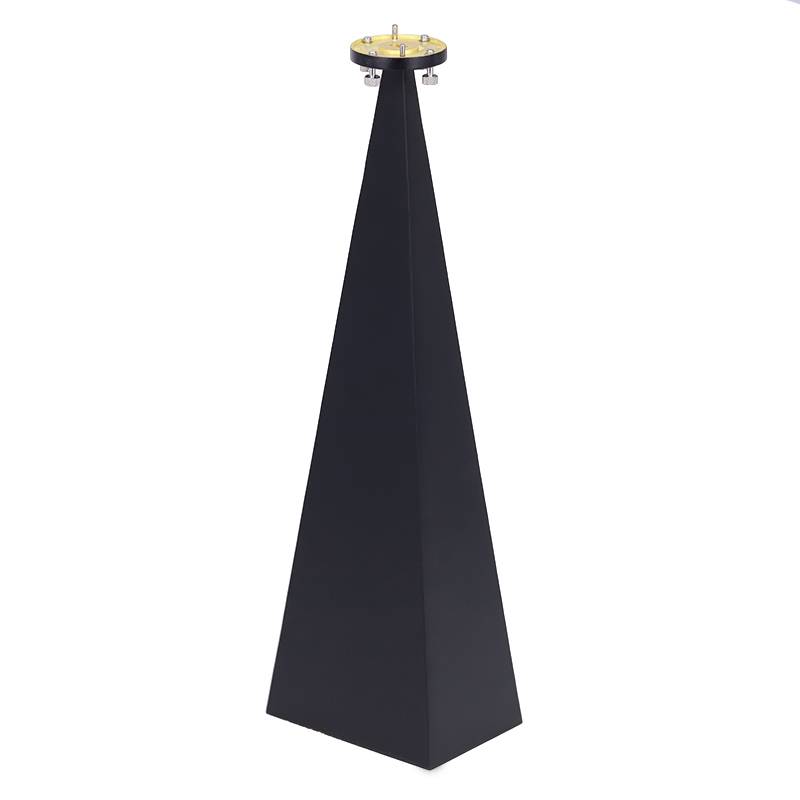

GHA329501-WR22-25 is a WR-22 Rectangular Standard Gain Horn Antenna 25 dBi Typical Gain, U Band 32.9 to 50.1GHz RF antenna that covers the frequency range from 32.9GHz-50.1GHz. This antenna has a Brass body and ensures an excellent microwave performance with high gain 25 dBi and VSWR of 1.2. This antenna is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications.

This radio frequency antenna is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: WR22
Connector Polarity: Standard
Connector Impedance (Ohm): 50
Antenna Type: Horn
Flange Designation: UG-383/U

Electrical Specifications:
Polarization: Linear
Number of Bands: Wide
Gain, Typical (dBi): 25
Beam Width, 3dB H (Deg): 5

Mechanical Data:
Body Material: Brass
Colour: White
Weight(g): 700

Environmental Specifications:
Operating Temperature Range: -55 ºC to +125 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
