WR-22 to 2.4mm Female Right Angle Waveguide to Coax Adapters with UG-383/U Flange, 33 - 50GHz

$600.00 USD
Shipping calculated at checkout.
Just 1 left. Order soon!
Spend $500.00 to FREE SHIPPING
DATASHEET Available--->Click to download

Product Description

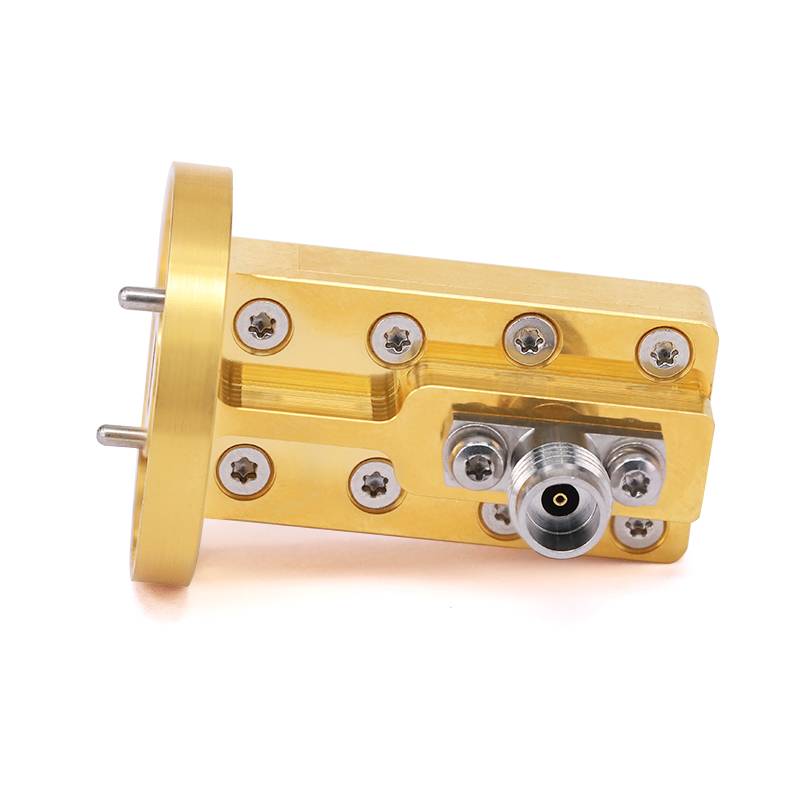

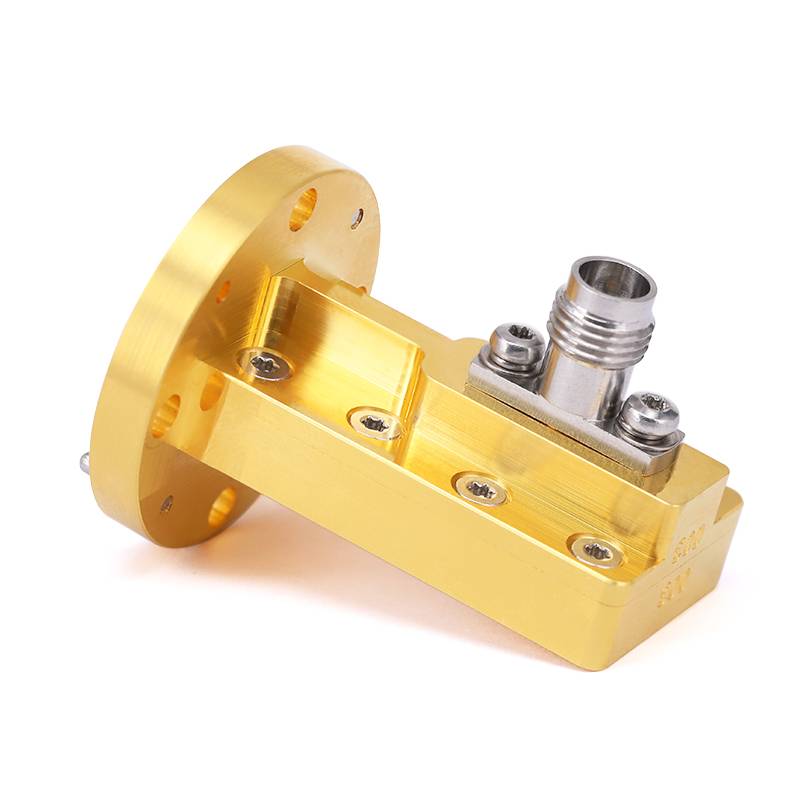

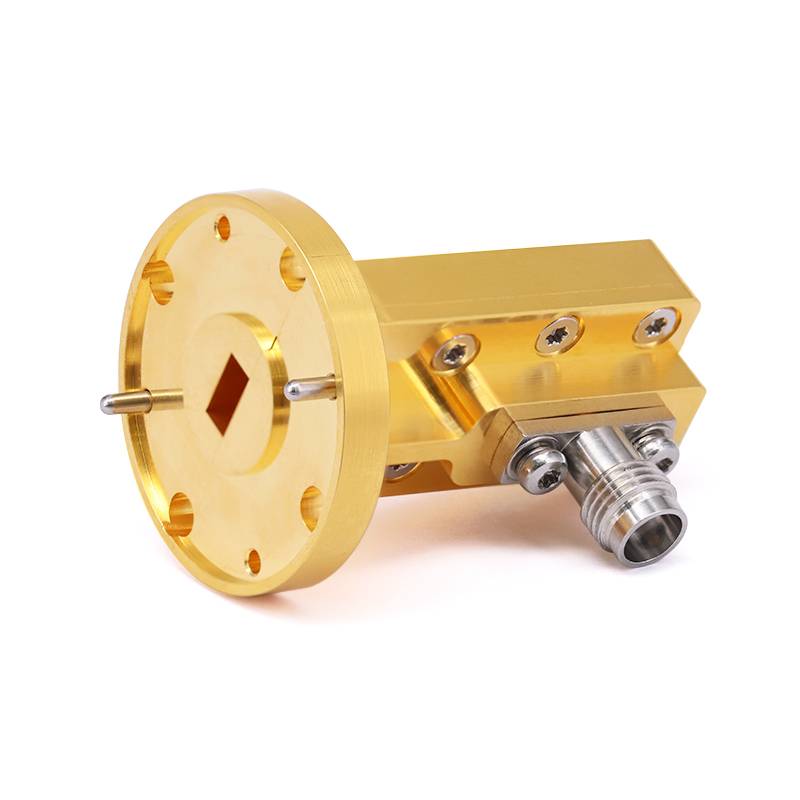

WR22/2.4-UG-K-V is a WR-22 to 2.4mm Female Right Angle Waveguide to Coax Adapters with UG-383/U Flange, 33 - 50GHz waveguide to coax adapter that covers the frequency range from 33-50GHz. This waveguide to coax adapter has a Right Angle body style and ensures an excellent microwave performance with low insertion loss and VSWR of 1.4.This waveguide to coax adapter is precisely manufactured to RF industries like military & space, RF communication, test & measurement and industrial applications..

This radio frequency waveguide to coax adapter is part of over 10,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 110 GHz radio frequency adapter that meets your requirements.

Specifications

Product Configuration:
Connector Series: 2.4mm
Connector Polarity: Standard
Connector Gender: Female
Connector Impedance (Ohm): 50
Waveguide Size: WR-22
Body Style: Right Angle
Flange Designation: UG-383/U

Electrical Specifications:
VSWR: 1.4
Insertion Loss: ≤0.5

Mechanical Data:
Body Material: Brass
Body Plating: Gold
Weight(g): 56.5
Colour: Golden

Environmental Specifications:
Operating Temperature Range: -30 ºC to +70 ºC
RoHS Compliant: Yes

For more information, please download product datasheet above for reference.
